Instrument Cluster Programming — EEPROM, PIN Extraction & Crash Data Reset

The instrument cluster stores more than just mileage. Inside its EEPROM (typically a 93C46, 93C56, or 24C series chip) you will find: the odometer value, the immobilizer PIN code, the VIN, service interval counters, and — critically after any accident — airbag crash data that locks the SRS module and prevents the airbag warning light from clearing.

The tools in this category give technicians direct read/write access to cluster and SRS module EEPROM, enabling repair workflows that OBD2 scanners cannot reach.

Three Core Use Cases

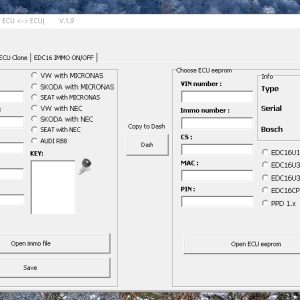

PIN Code Extraction: When a replacement cluster is installed, the stored PIN must match the body control module. Reading the EEPROM of the original cluster extracts the 4- or 5-digit PIN without dealer access. Supported across BMW (E-series), VAG (Audi/VW), Mercedes W-series, and most Asian platforms.
Crash Data Reset (Airbag Module): After a deployment event, the SRS ECU stores crash data in its internal EEPROM. Even after replacing the airbag, the module remains locked with a permanent fault code. Clearing crash data via EEPROM write — not just OBD fault code reset — restores the module to its factory state without replacement. Supported for Bosch, Autoliv, TRW, and Takata SRS units.
Cluster Repair & Calibration: Pixel failures, backlight repairs, and LCD replacement all require cluster re-initialization. Some clusters (Volvo, Renault, PSA) require EEPROM reconfiguration after hardware repair to restore full functionality.

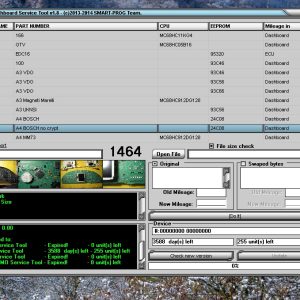

EEPROM Access Methods by Cluster Type

Cluster / Module
EEPROM Chip
Access Method
PIN in EEPROM?

VW / Audi (pre-MQB)
93C46 / 93C86
In-circuit or desoldered
Yes — bytes 0x10–0x14

BMW E38 / E39 / E46
24C32 / 24C64
In-circuit (I²C)
Yes — EWS sync bytes

Mercedes W211 / W220
95080 / 95160
Desoldering recommended
Yes — EIS linked data

Bosch SRS (most brands)
95040 / 95080
Desoldered — SOIC clip
N/A — crash data bytes

TRW / Autoliv SRS
ST95256
In-circuit (SPI)
N/A — crash data bytes

Required Hardware

EEPROM programmer: MiniPro TL866II+, T-Code Pro, or UPA USB — reads 93Cxx, 24Cxx, 95xxx series chips
SOIC8 clip: For in-circuit reading without desoldering — works on most SRS modules
Hot air station: Required for desoldering QFN or TSSOP packages on newer clusters

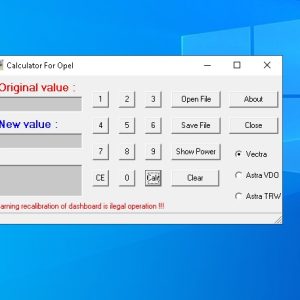

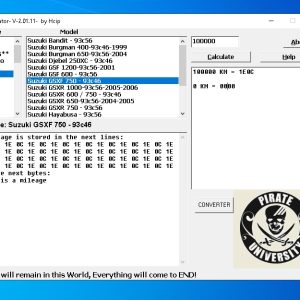

Hex editor or dedicated software: Tools like OBDSTAR, Yanhua Mini ACDP, or Diagmaster include built-in EEPROM databases with PIN offsets pre-mapped

Frequently Asked Questions

{
“@context”: “https://schema.org”,
“@type”: “FAQPage”,
“mainEntity”: [
{
“@type”: “Question”,
“name”: “Can I reset airbag crash data without replacing the SRS module?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Yes, in most cases. Crash data is stored in the SRS module EEPROM. Writing a clean EEPROM image (with crash bytes zeroed) restores the module to its factory state. This works for Bosch, Autoliv, and TRW SRS units. Some newer modules (post-2018 with secure boot) require replacement.”
}
},
{
“@type”: “Question”,
“name”: “What EEPROM programmer do I need for cluster PIN extraction?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “The MiniPro TL866II+ covers the vast majority of dashboard chips (93Cxx, 24Cxx, 95xxx series). For in-circuit reading without desoldering, add a SOIC8 clip. For advanced platforms like BMW CAS or Mercedes EIS, dedicated tools like Yanhua Mini ACDP are recommended.”
}
},
{
“@type”: “Question”,
“name”: “Is OBD2 sufficient for cluster and airbag work?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “No. OBD2 can clear fault codes but cannot access or modify EEPROM data. PIN extraction and crash data reset both require direct EEPROM read/write access via a hardware programmer — OBD2 does not expose this level of access.”
}
},
{
“@type”: “Question”,
“name”: “Which vehicles are supported for crash data reset?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Coverage includes most European (VW, Audi, BMW, Mercedes, Volvo, Renault, Peugeot), Asian (Toyota, Honda, Hyundai/Kia), and American (Ford, GM, Chrysler) vehicles from 2000 onward. Each product listing specifies exact model and year coverage.”
}
}
]
}
