MANUALS

Workshop Manuals & Wiring Diagrams — Find the Sensor Location in Minutes, Not Hours

A technician diagnosing a P0191 fuel rail pressure fault on a Kubota V3800 engine should not be searching through five different PDFs, two forums, and a YouTube video trying to locate the FRP sensor connector pinout. The right wiring diagram reduces a 3-hour diagnosis to 20 minutes. That is the only metric that matters in a production workshop.

Every manual in this category is selected for diagnostic utility: wiring diagrams, sensor locations, ECU pin assignments, hydraulic schematics, and calibration procedures — not just generic maintenance schedules.

What Separates a Diagnostic Manual from a Basic Service Manual

Wiring diagrams with connector pinouts: Shows exactly which pin on which connector carries the sensor signal, the reference voltage, and the ground. Essential for voltage-drop testing and intermittent fault diagnosis.
ECU input/output maps: Lists every sensor and actuator connected to the engine control unit with expected voltage ranges. Enables systematic no-code diagnosis.
Hydraulic schematics (equipment manuals): Kubota and New Holland manuals include full hydraulic circuit diagrams — valve locations, flow paths, and pressure test points for loader, backhoe, and lift circuits.
DTCs with probable causes: Not just the fault code description, but the ranked list of components to test first — saves time on high-frequency faults.
Calibration and adaptation procedures: Injection timing, idle speed, EGR valve learn, DPF regeneration thresholds — values that matter after replacing major components.

Coverage by Brand

Brand / Series
Coverage
Includes Wiring
Format

Kubota (23 models)
B / BX / L / M / MX / RTV series — engines + hydraulics
Yes — full harness diagrams
PDF (searchable)

MaxxForce (9 series)
MaxxForce 7 / 9 / 10 / 11 / 13 / DT / N9 / N10
Yes — ECU pinouts + harness
PDF (searchable)

New Holland
Agricultural tractors + CNH industrial engines
Yes — electrical + hydraulic
PDF (searchable)

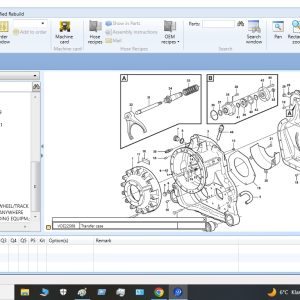

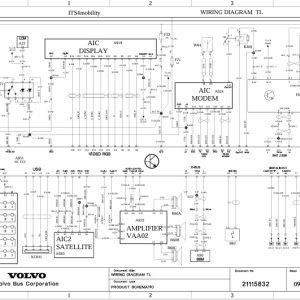

Volvo Trucks (PROSIS)
FH / FM / FL / FMX — parts + wiring EWD
Yes — complete EWD
Interactive (PROSIS)

BMW G30 (5 Series)
Full repair + electrical troubleshooting (ETM)
Yes — ETM with connector views
PDF

Audi A4 / A5 (B9)
Repair + current flow diagrams
Yes — current flow diagrams
PDF

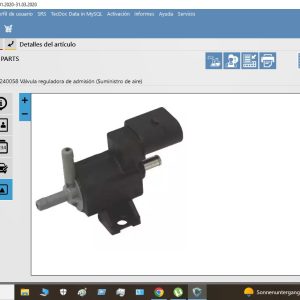

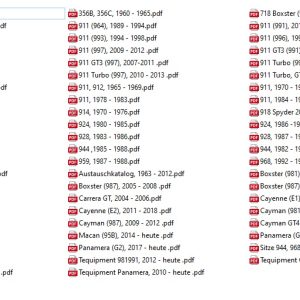

JCB 3X / Porsche / TecDoc
Workshop + parts catalogue
Varies by title
PDF / Interactive

How to Use Wiring Diagrams for Fast Diagnosis

Start with the DTC: Look up the fault code in the manual’s DTC index — it points directly to the relevant circuit diagram page.
Identify the circuit: The wiring diagram shows every component in the faulty circuit — sensor, wiring, fuse, relay, and ECU pin — with wire colors and connector identifiers.
Locate connector in the vehicle: The connector location diagram (included in all Kubota and MaxxForce manuals) shows a physical map of where each connector is routed in the harness.
Test at the ECU pin: With the ECU pin assignment table, you can test the signal directly at the ECU connector using a back-probe — confirming whether the fault is in the sensor, wiring, or the ECU itself.

Frequently Asked Questions

{
“@context”: “https://schema.org”,
“@type”: “FAQPage”,
“mainEntity”: [
{
“@type”: “Question”,
“name”: “Are the manuals PDF or online-access only?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Most manuals are delivered as searchable PDF files for permanent offline use. Some titles (Volvo PROSIS, TecDoc) are delivered as interactive software installations. All formats are specified in each product listing before purchase.”
}
},
{
“@type”: “Question”,
“name”: “Do the Kubota and MaxxForce manuals include wiring diagrams?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “Yes. Both Kubota and MaxxForce manuals include complete electrical schematics with connector pinouts, wire colors, and harness routing diagrams. This is the most common reason workshops purchase these manuals over free generic resources.”
}
},
{
“@type”: “Question”,
“name”: “What years do the MaxxForce manuals cover?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “MaxxForce manuals cover the primary production years for each engine series: MaxxForce 7 (2007–2012), MaxxForce DT (2007–2014), MaxxForce 11/13 (2007–2014), N9/N10 (2015–2019). Exact coverage is listed in each product description.”
}
},
{
“@type”: “Question”,
“name”: “Can I use these manuals without special software?”,
“acceptedAnswer”: {
“@type”: “Answer”,
“text”: “PDF-format manuals open in any standard PDF reader (Adobe Acrobat, Foxit, browser-based). Interactive formats like Volvo PROSIS and TecDoc require installation on a Windows PC — system requirements and installation instructions are included with each download.”
}
}
]
}
