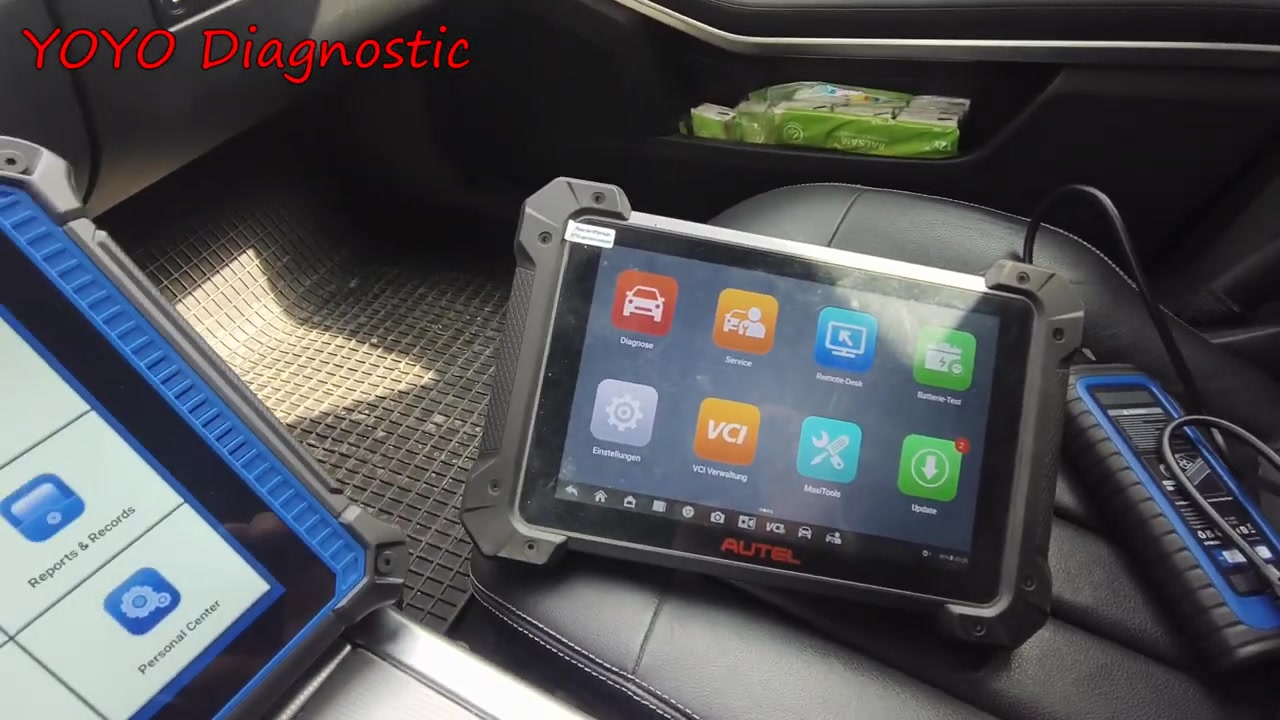

We connected two high-end diagnostic tablets to the same 2015 Mercedes-Benz W212 E 200 BlueTEC and recorded every result. The Autel MK908 V2 went up against the Udiag X95 Pro, a Launch-based tool at a fraction of the price. The results challenge a common assumption: more expensive does not always mean faster or more complete.
The Test Setup
| Tool | Platform | Price |
|---|---|---|
| Autel MK908 V2 | Autel Maxisys (proprietary) | ~1000-1200 EUR |
| Udiag X95 Pro | Launch X431 (shared) | ~300-500 EUR |
Both scanners were tested on a 2015 Mercedes-Benz W212 E 200 BlueTEC Sedan (VIN: WDD2120061B247905). The W212 multi-bus architecture (CAN, LIN, MOST) with 77+ ECUs is a benchmark for European diagnostic tool validation.
Autel MK908 V2 – Detailed DTCs, Slower Scan

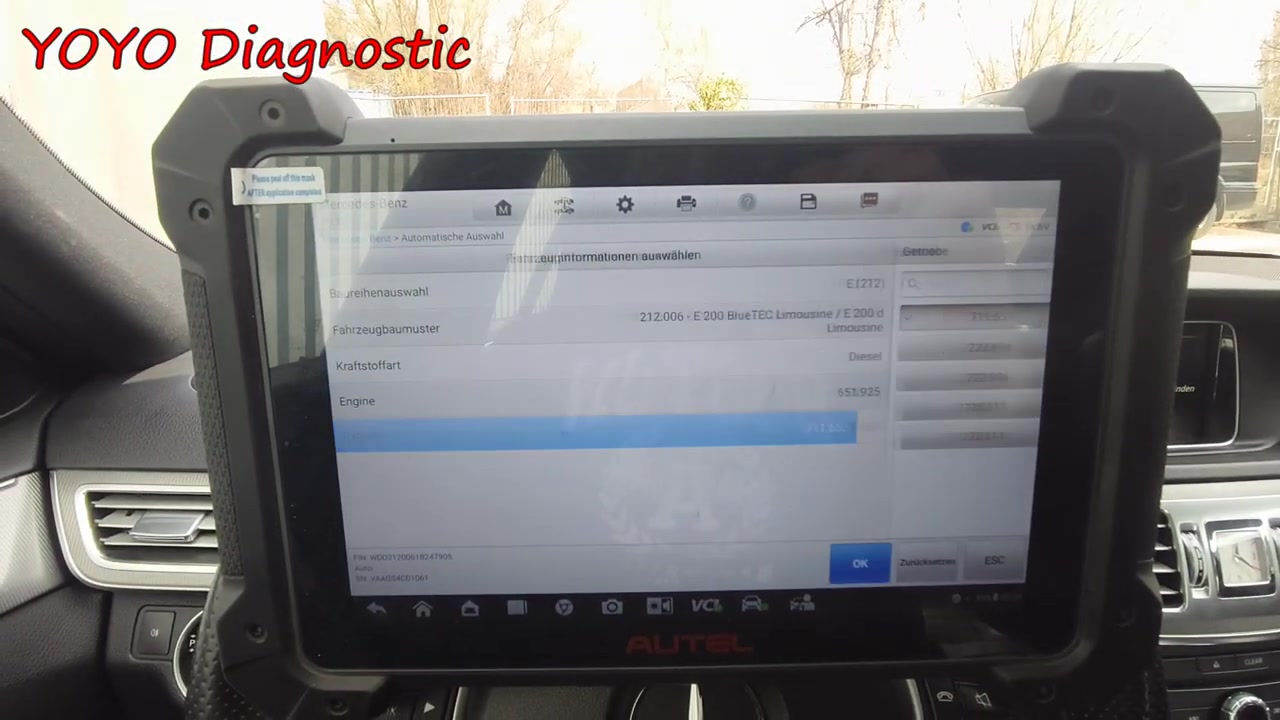

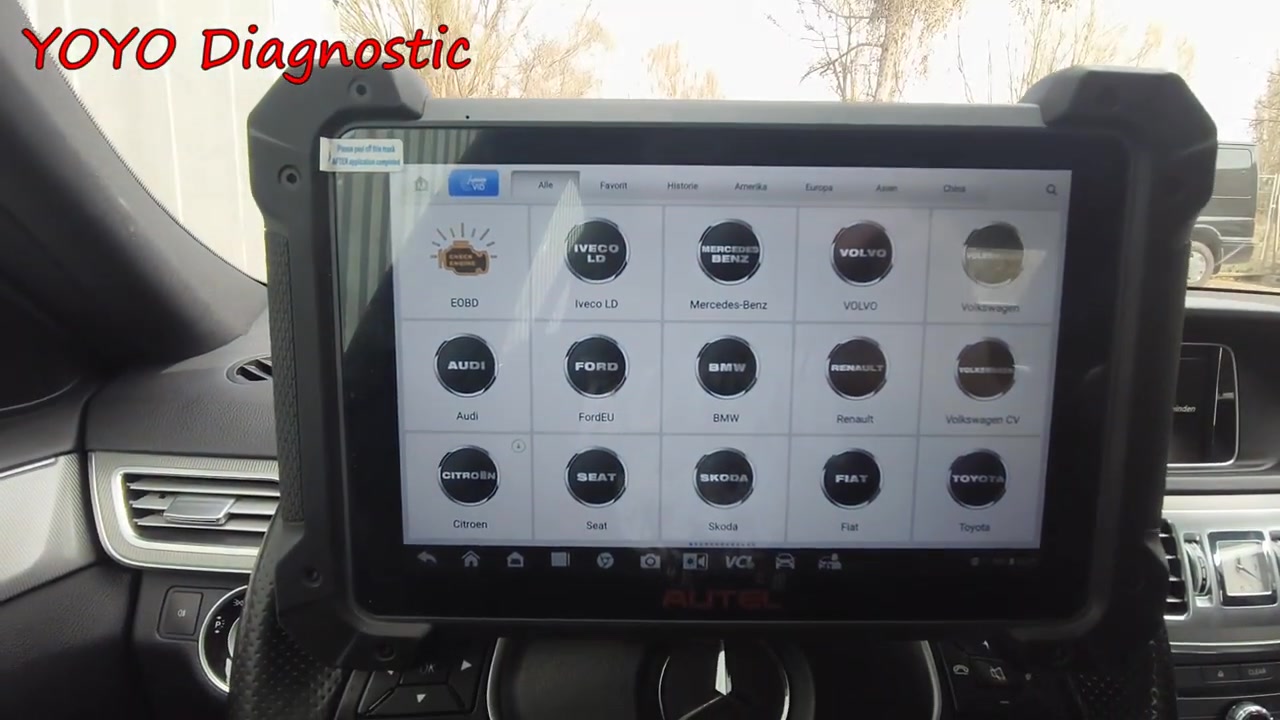

Vehicle Identification: Instant
The Autel identified the vehicle immediately via OBD2 VIN read – make, model (212.006 E 200 BlueTEC), fuel type (Diesel), and year (2015) all confirmed without manual entry.

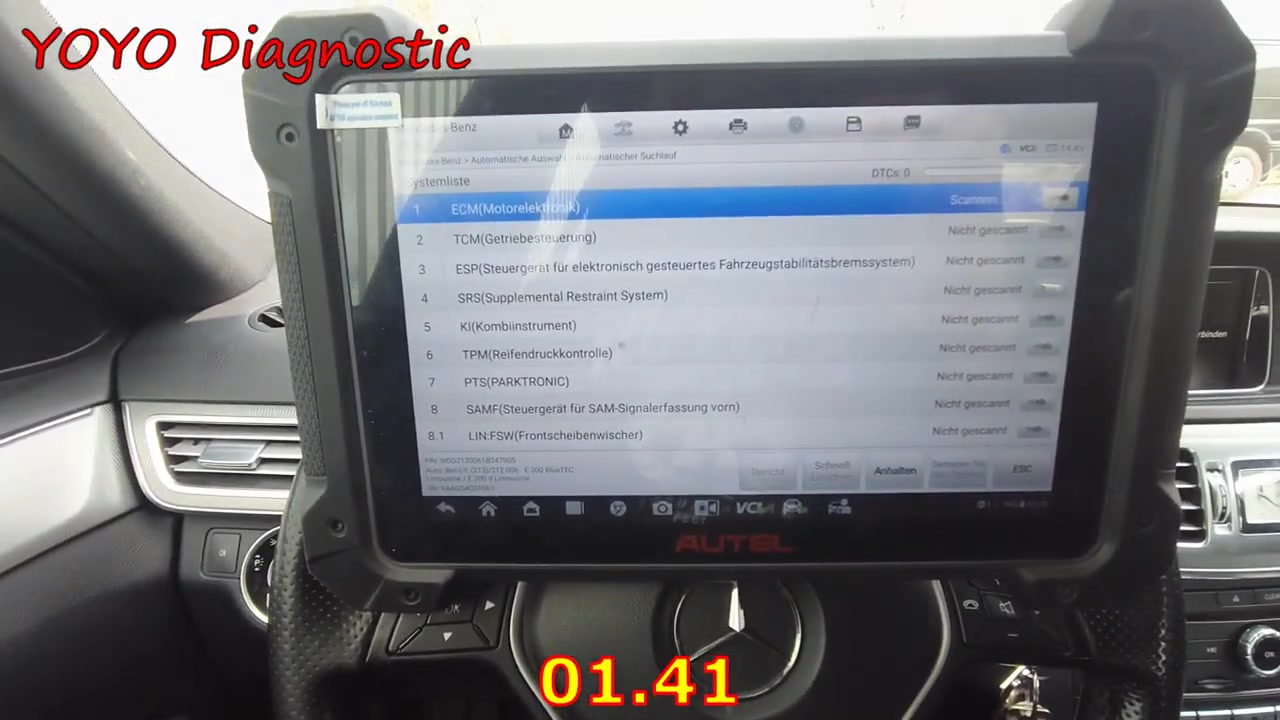

Full System Scan: 77 Modules, DTCs Visible in Real Time
The Autel auto-scan ran for approximately 1 minute 12 seconds and accessed 77 control modules. Key advantage: fault codes appear as each module is interrogated, not just in the final summary.

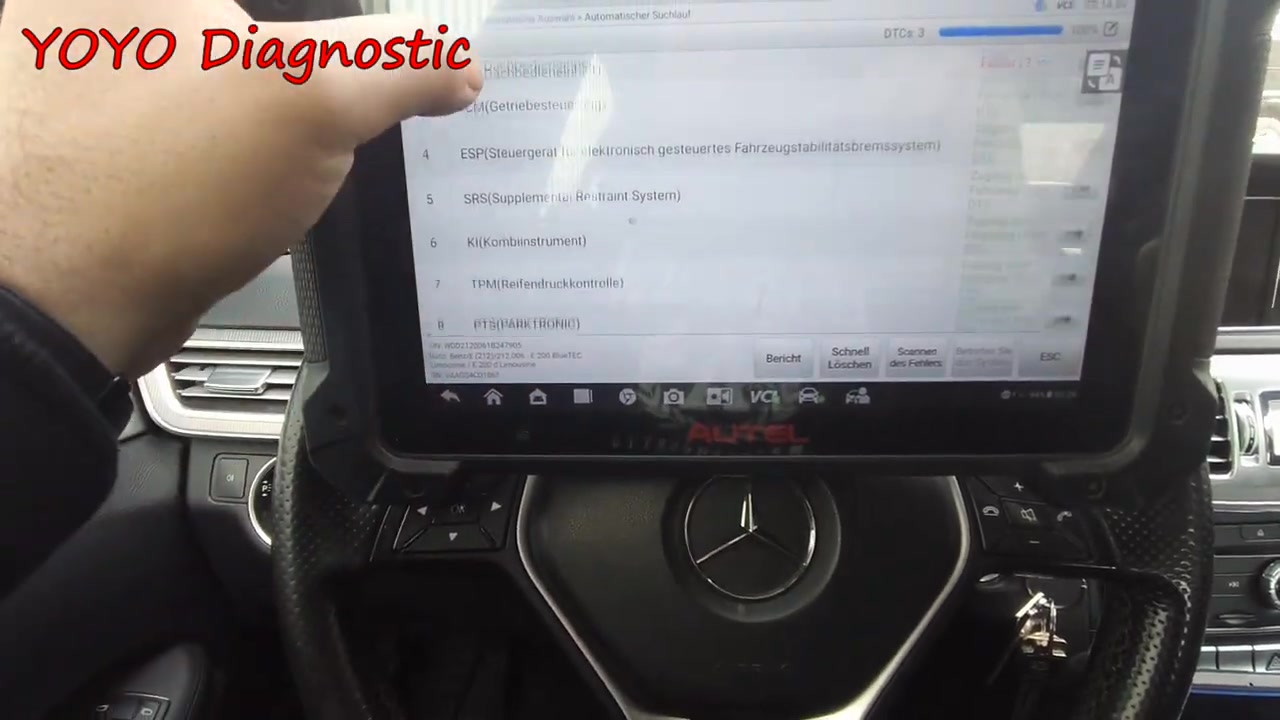

Final Result: 2 Modules With Faults, Full DTC Detail
| Module | Fault Code | Description | Status |
|---|---|---|---|
| ECM – Engine Control | P000000 | Cylinder 4 Misfire (Fehlzundung Zylinder 4) | Current + Stored |
| DBE – Overhead Control | 974915 | Rear Interior Lighting Short Circuit | Current + Stored |
| TCM – Transmission | None | No DTC | OK |
| ESP – Stability | None | No DTC | OK |
| Remaining 73 modules | None | No DTC or No Answer | OK/Skipped |
P000000 on the OM651 2.2 CDI diesel points toward a faulty glow plug, injector drift, or low compression in cylinder 4. 974915 indicates a rear interior lighting circuit fault – commonly a failed lamp or chafed headliner wire. Both active and stored in memory.
Udiag X95 Pro – Faster, Broader, Launch Platform

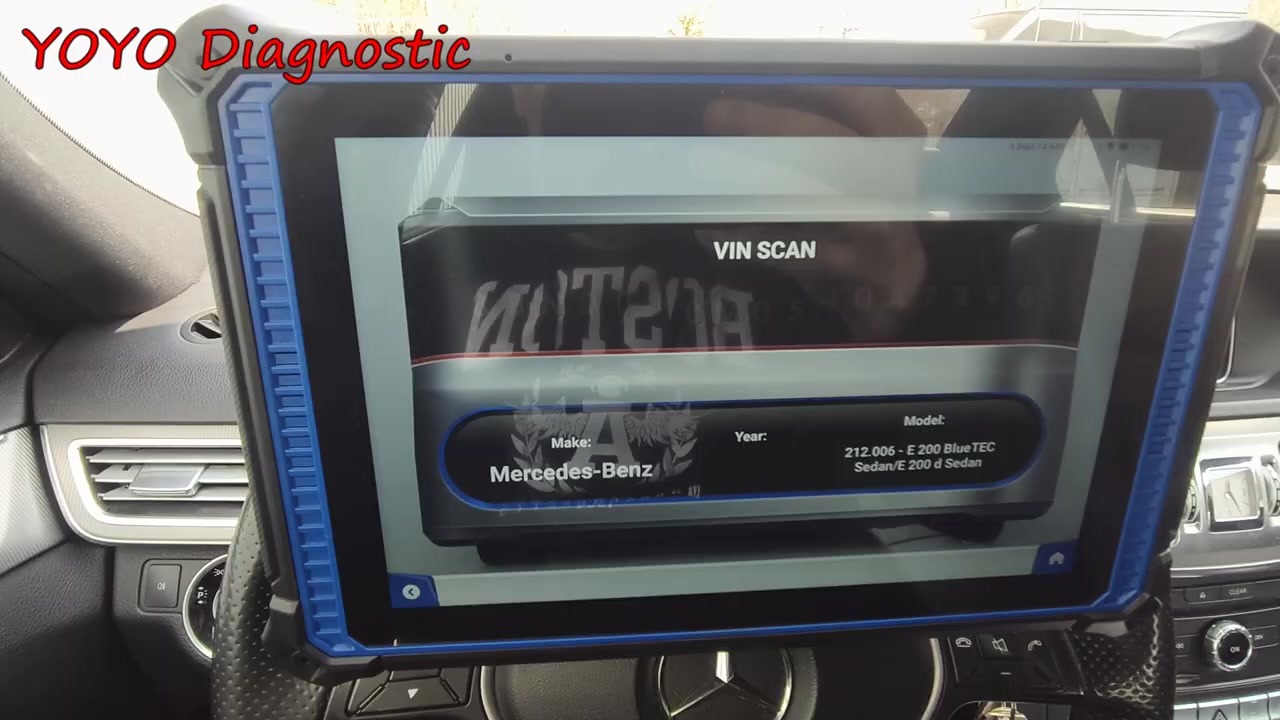

Vehicle Identification: Instant With Confirmation Tone
The Udiag X95 Pro decoded the VIN instantly with an audible confirmation tone on successful read – a small UX detail that confirms connection quality before the scan begins.

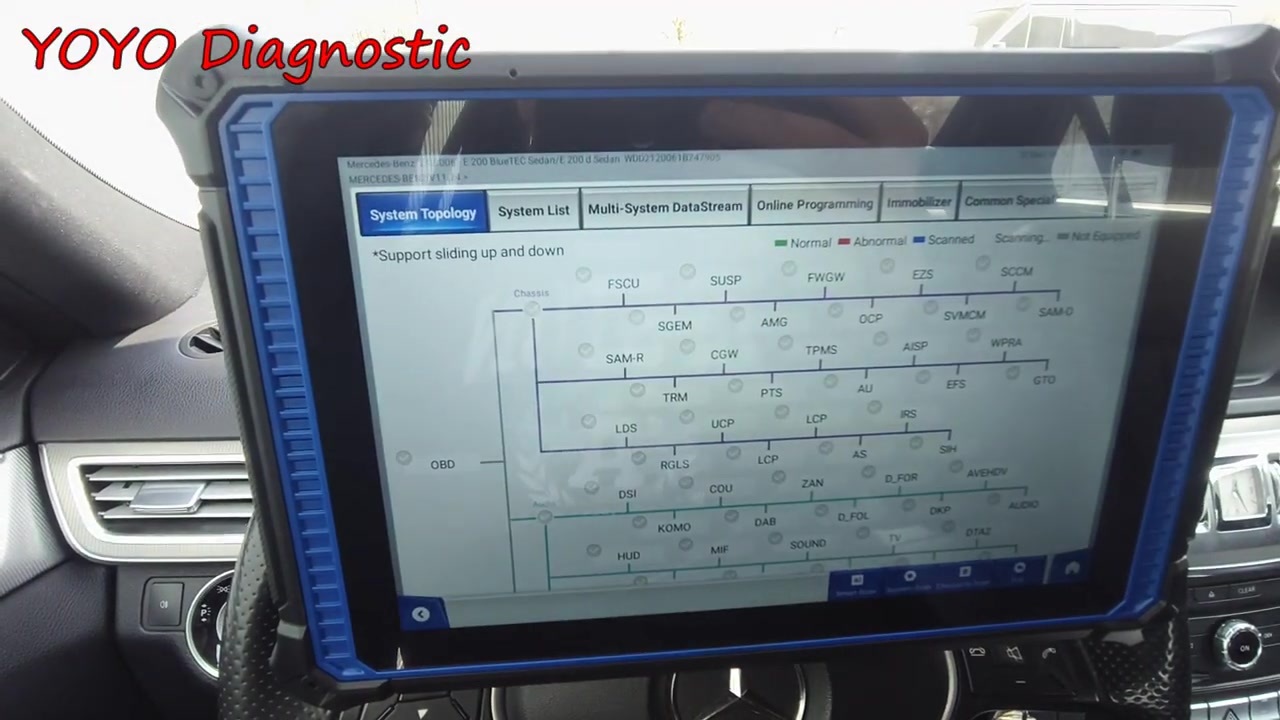

System Topology Map: Visual Module Overview
Before scanning, the Udiag X95 Pro displays a system topology map – the full vehicle electronic architecture as a network diagram. This Launch platform feature lets technicians see the complete module layout before interrogation. Autel does not offer this view.

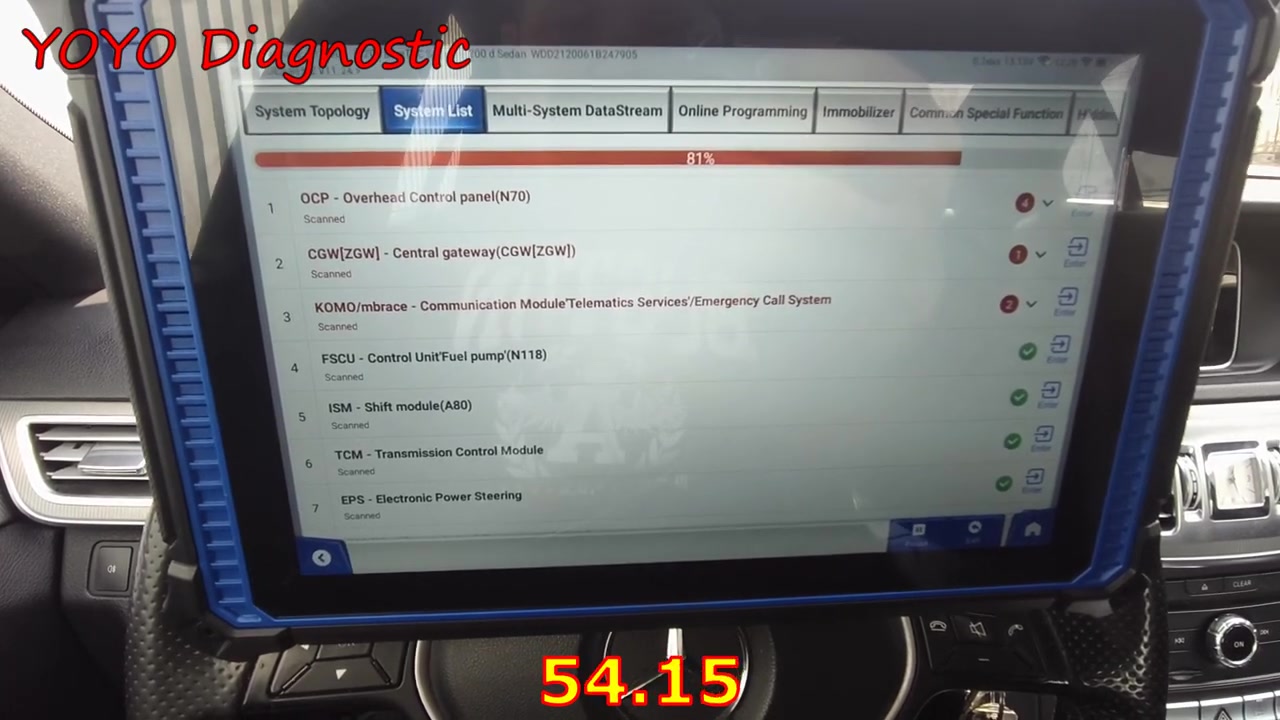

Full System Scan: 98 Modules, 35 Seconds Faster
The Udiag X95 Pro completed its scan in approximately 37 seconds – versus Autel 72 seconds. More importantly, it queried 98 modules versus Autel 77. The extra 21 modules include the Central Gateway (CGW) and mbrace Telematics – both of which had active faults that Autel never detected.

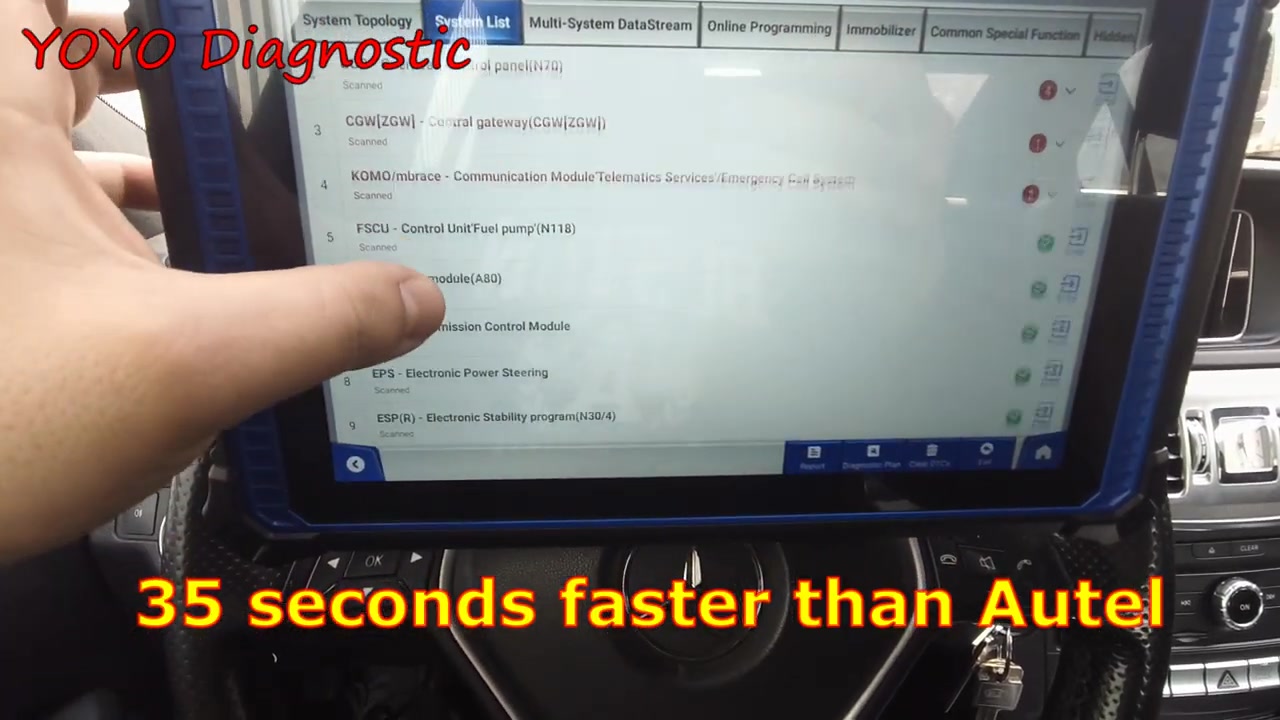

Final Result: 4 Modules With Errors
| Module | Status | Autel found? | Udiag X95 Pro found? |
|---|---|---|---|
| ECM – Engine Control | 1 fault (misfire) | Yes – P000000 with description | Yes |
| OCP – Overhead Control Panel (N70) | 1 fault (lighting) | Yes – 974915 with description | Yes |
| CGW – Central Gateway | 1 fault | Not scanned | Yes – detected |
| KOMO/mbrace – Telematics / Emergency Call | 1 fault | Not scanned | Yes – detected |
The Udiag X95 Pro found 2 additional faulty modules Autel missed entirely: the Central Gateway and mbrace Telematics/Emergency Call. The CGW routes all diagnostic traffic – a CGW fault can affect access across the whole vehicle. These are not obscure ECUs.

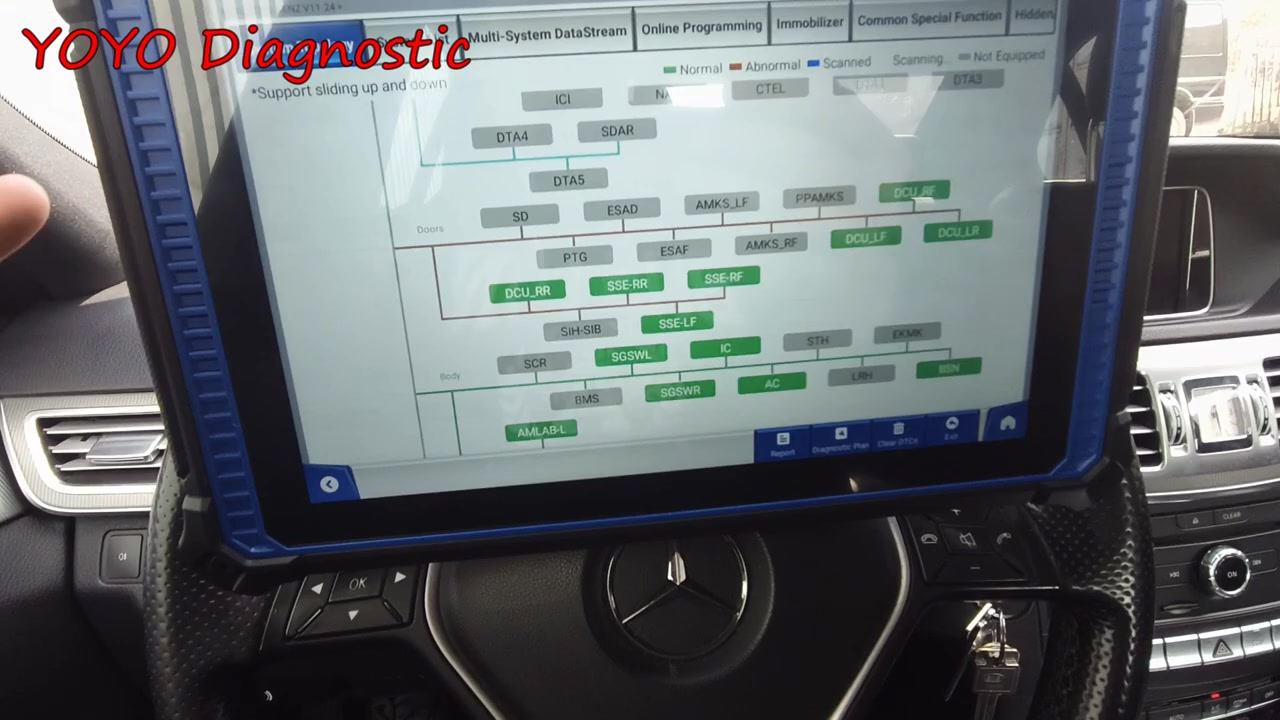

The Launch Platform Confirmed
The presenter confirmed what professionals already know: Udiag X95 Pro, ThinkCar, ThinkPad, and Launch are the same tool. Menus, database, and protocol stack are identical. Only branding and pricing differ. Buying Udiag X95 Pro instead of Launch-branded saves EUR 200-400 for identical diagnostic capability.
Full Comparison
| Metric | Autel MK908 V2 | Udiag X95 Pro (Launch) |
|---|---|---|
| Modules scanned | 77 | 98 |
| Scan speed | ~72 seconds | ~37 seconds |
| Faulty modules found | 2 (ECM + OCP) | 4 (ECM + OCP + CGW + KOMO) |
| DTC detail in summary | Full (code + desc + status) | Module list only |
| System topology map | No | Yes |
| Central Gateway scan | Not scanned | Yes – fault found |
| Telematics / mbrace | Not scanned | Yes – fault found |
| Price | ~EUR 1000-1200 | ~EUR 300-500 |
Verdict
On the 2015 Mercedes W212, the Udiag X95 Pro outperformed the Autel MK908 V2 on every measurable metric except one: immediate DTC description visibility during the scan. If your workflow involves reviewing DTCs after the scan anyway, that Autel advantage disappears. The Udiag X95 Pro found more faults, scanned more modules, and did it in half the time at less than half the price.
The key takeaway: the Launch platform – regardless of brand label (Udiag X95 Pro, ThinkCar, Launch) – covers more of the Mercedes W212 architecture than the Autel at this price point. Missing the CGW and mbrace faults would mean an incomplete diagnosis handed to the customer.
Technical Notes
P000000 – Cylinder 4 Misfire on OM651 Diesel
On the OM651 2.2 CDI, a cylinder-specific misfire typically indicates a faulty glow plug, injector calibration drift, low compression, or timing chain wear. Further live data analysis (fuel rail pressure, injector pulse width, cylinder contribution test) is needed to isolate root cause.
Central Gateway Fault – Why It Matters
The CGW on the W212 routes all K-line and CAN bus diagnostic traffic from the OBD2 port to individual ECUs. A CGW fault can indicate firmware inconsistency, a disrupted bus segment, or a non-responding module. Tools that skip the CGW in their scan list may report a clean bill of health on a vehicle with active network issues.
Review based on live comparison video by Udiag X95 Pro AUTO REPAIR DIY. Vehicle: 2015 Mercedes-Benz W212 E 200 BlueTEC (VIN: WDD2120061B247905).
