Complete CASE CNH Electrical & Hydraulic Schematics Collection
64 full electrical wiring schematics covering all CASE CE machine types. Tier 2, Tier 4A, and Tier 4B (Final) variants included. Essential for electrical troubleshooting, component replacement, and system diagnostics.
What’s Included

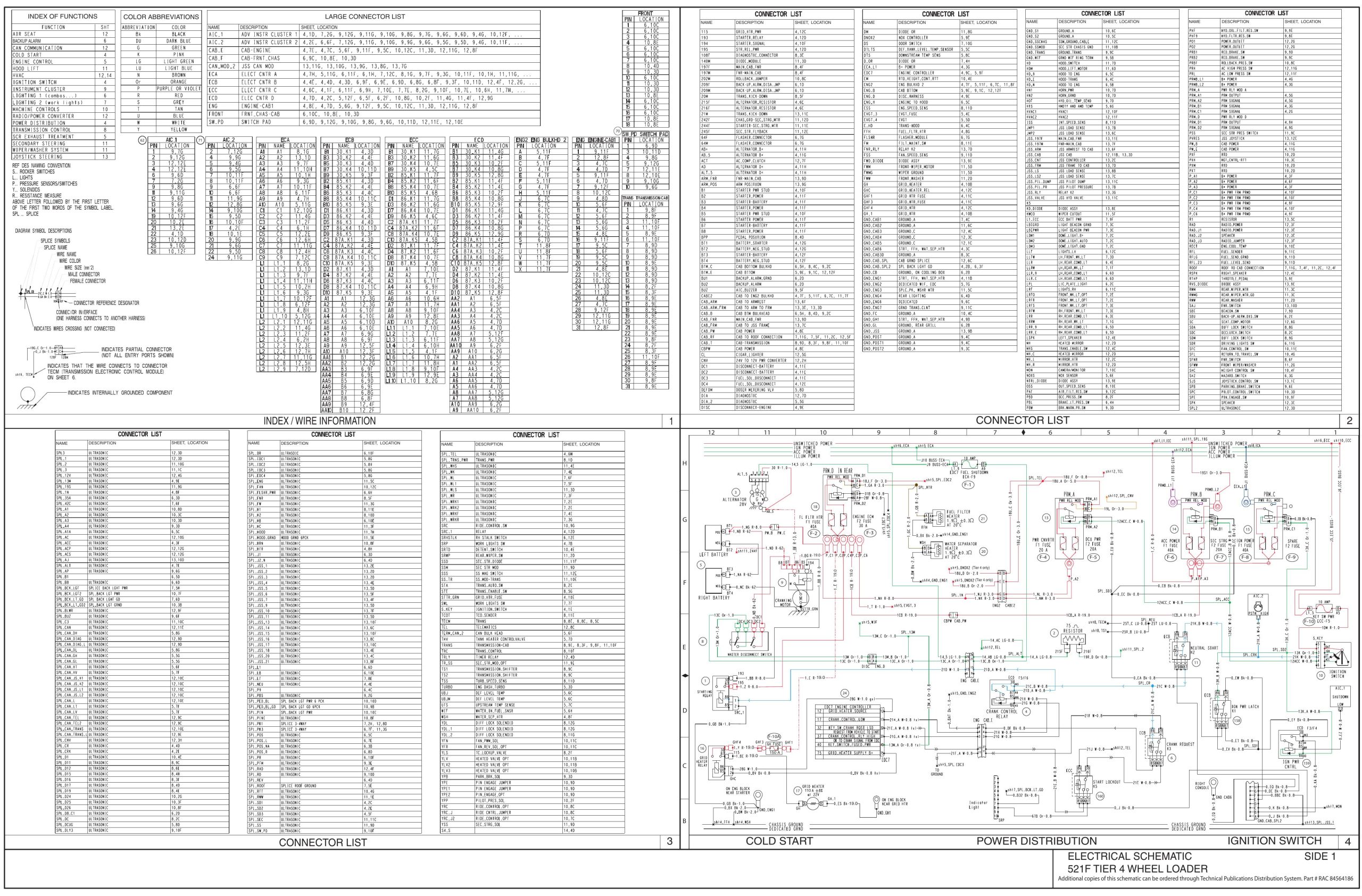

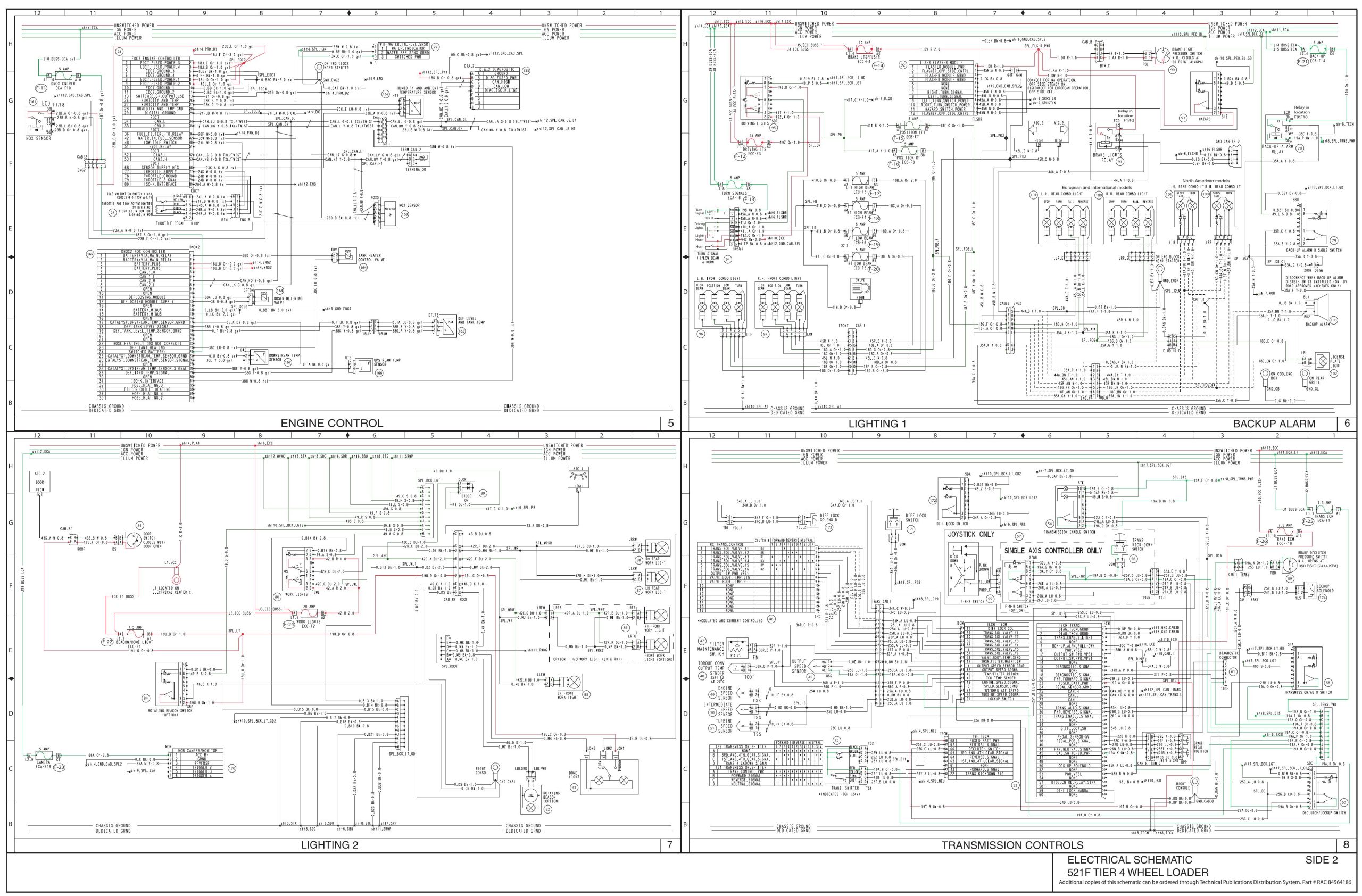

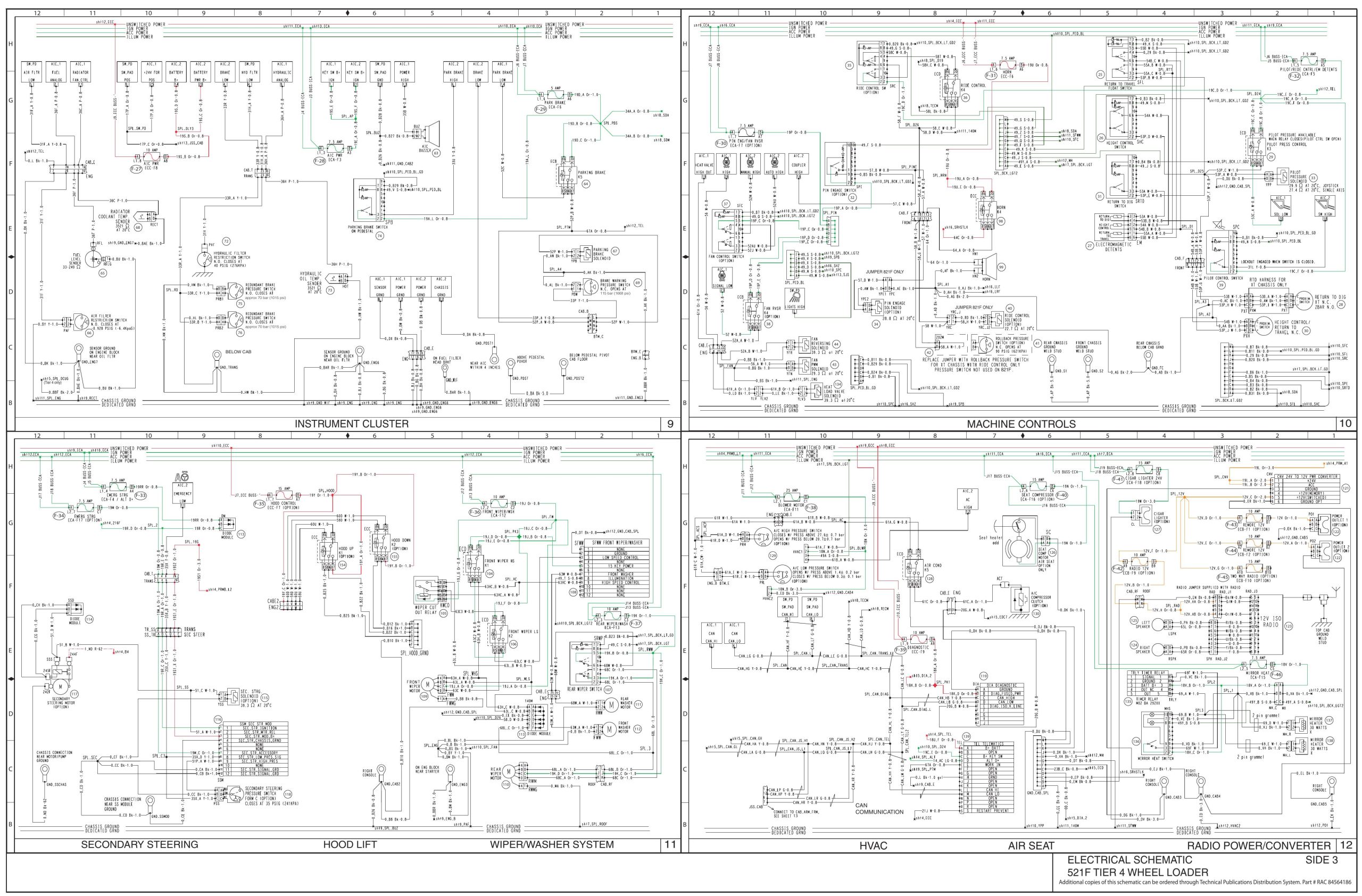

- Wheel Loaders — 521F, 621F, 721F, 821F, 921F, 1021F, 1121F, 1221F (Tier 2, 4A, 4B)

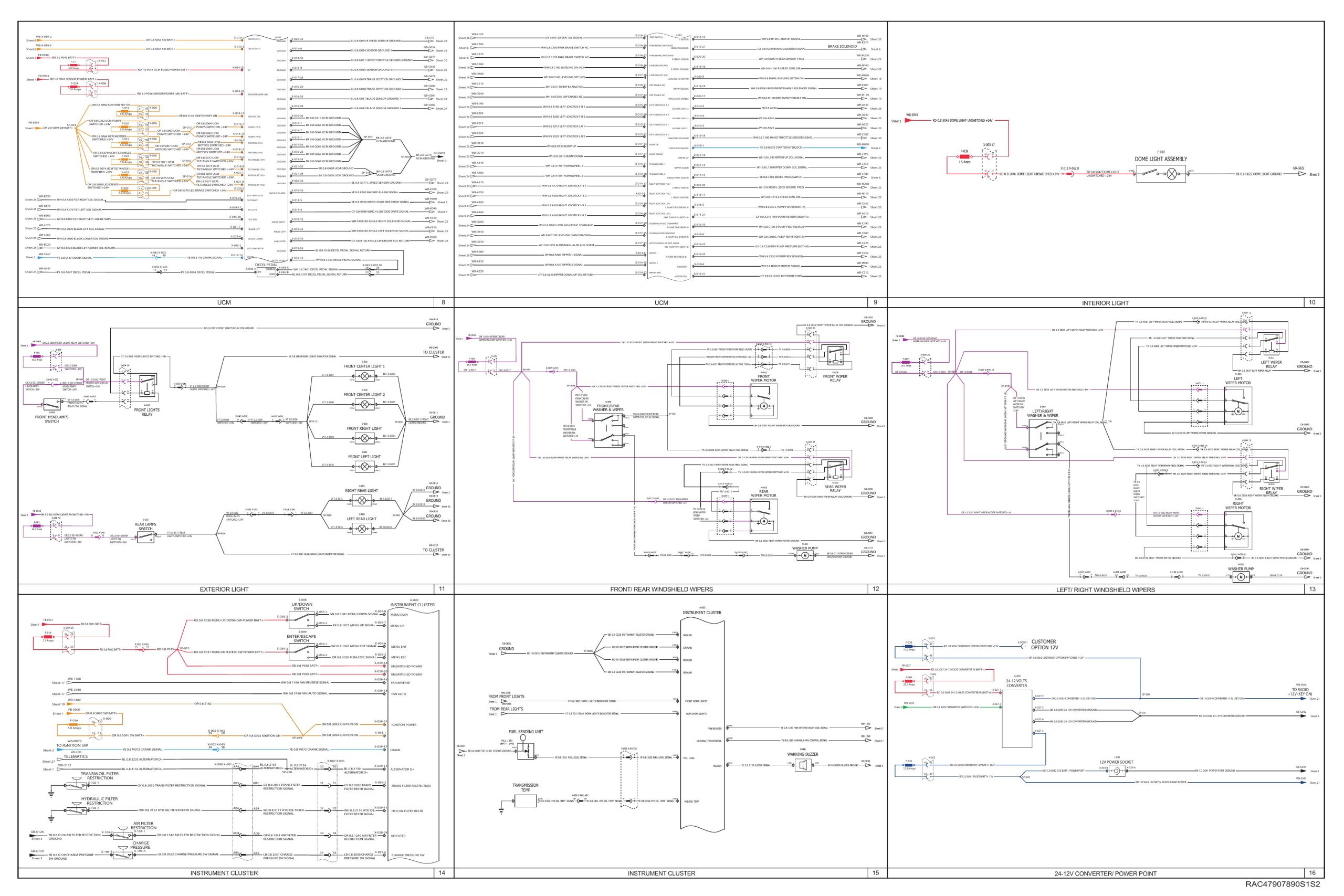

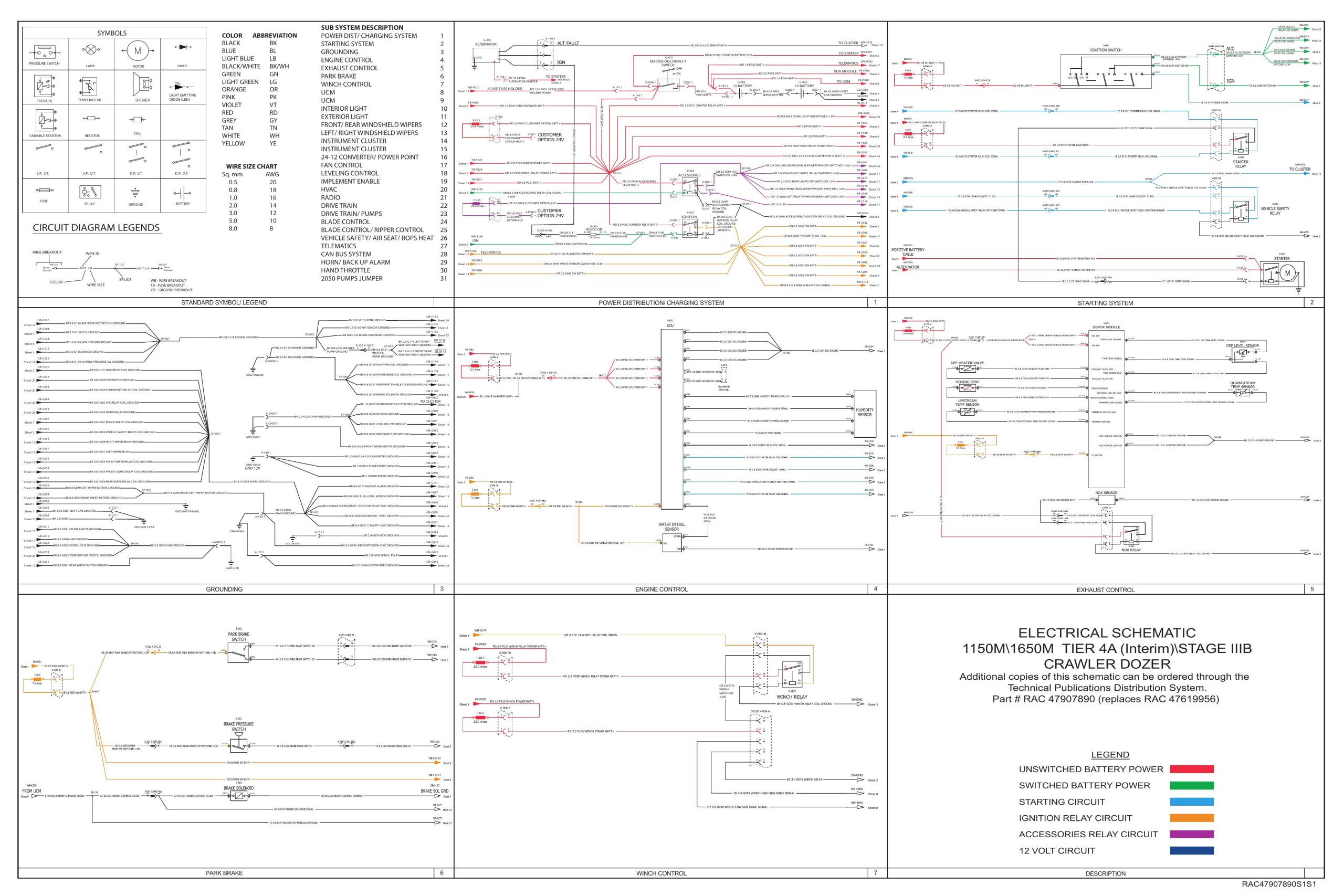

- Crawler Dozers — 850M, 1150M, 1650M, 2050M (Tier 2, 4A, 4B)

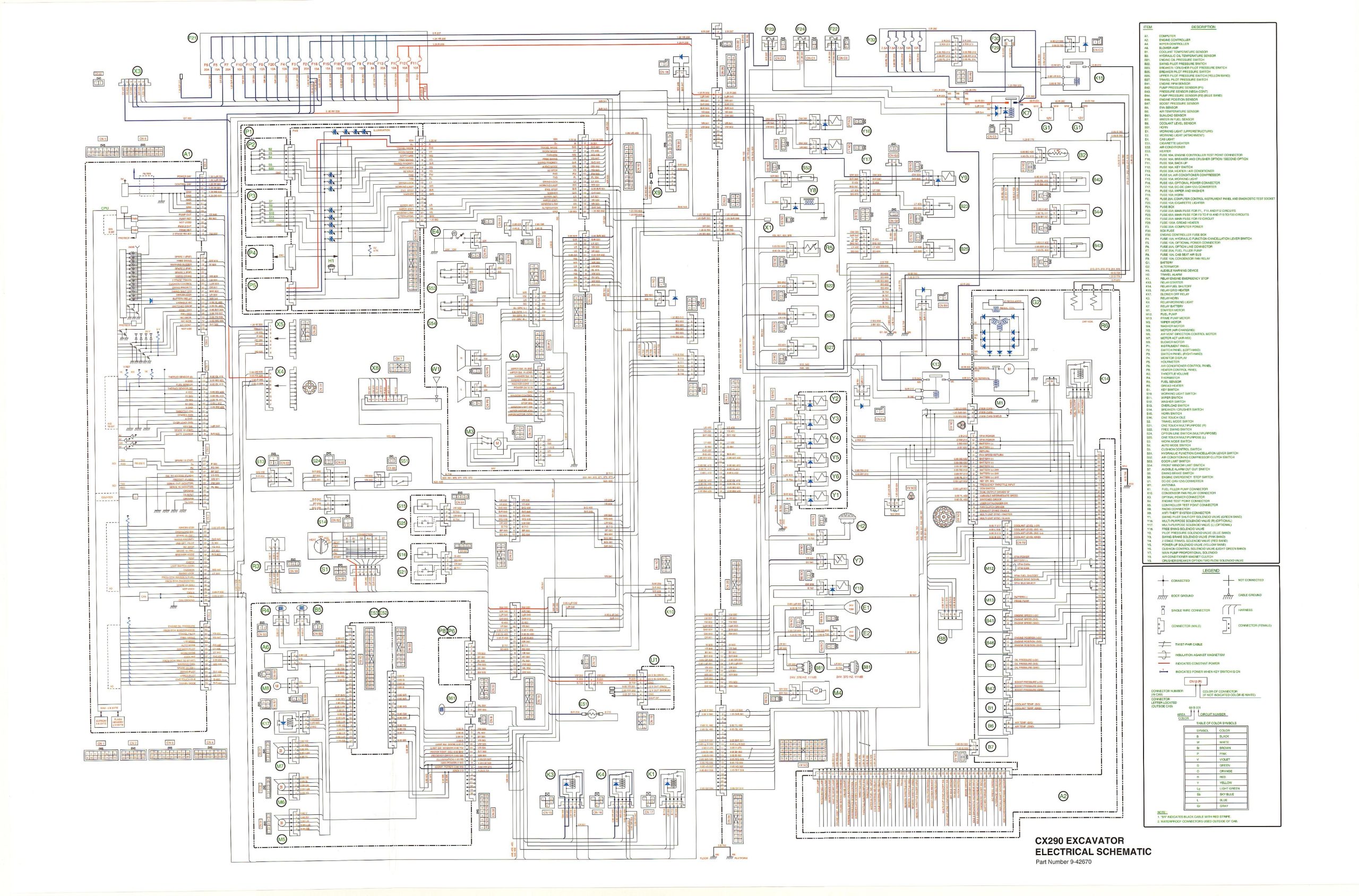

- Excavators — CX290C and other CX series electrical schematics
- Skid Steer Loaders — SR130, SR150, SR175, SV185, SR200, SR220, SR250 Alpha Series
- Connector Diagrams — 333F, 335F, 335M, 336M connector details
Why These Schematics?
- Full-page A3/A4 resolution — every wire and connector labeled
- Pin-break serial number specific versions
- Tier-specific variants (Tier 2 / Tier 4A Interim / Tier 4B Final)
- Essential companion to any service manual
Instant Download
After purchase, you receive a secure link to our file server. Click any schematic PDF to download it directly. All 64 files available immediately.
