The CASE 430, 440, and 450 skid steer loaders share a hydrostatic drive system that, when properly diagnosed and adjusted, delivers consistent breakout force and travel speed across their service life. When something goes wrong — slow travel, reduced lift force, or hydraulic overheating — the service manual is the only document that shows the correct charge pressure spec, the auxiliary flow adjustment point, and the drive motor case drain flow limit.
What the CASE 430 Service Manual Covers

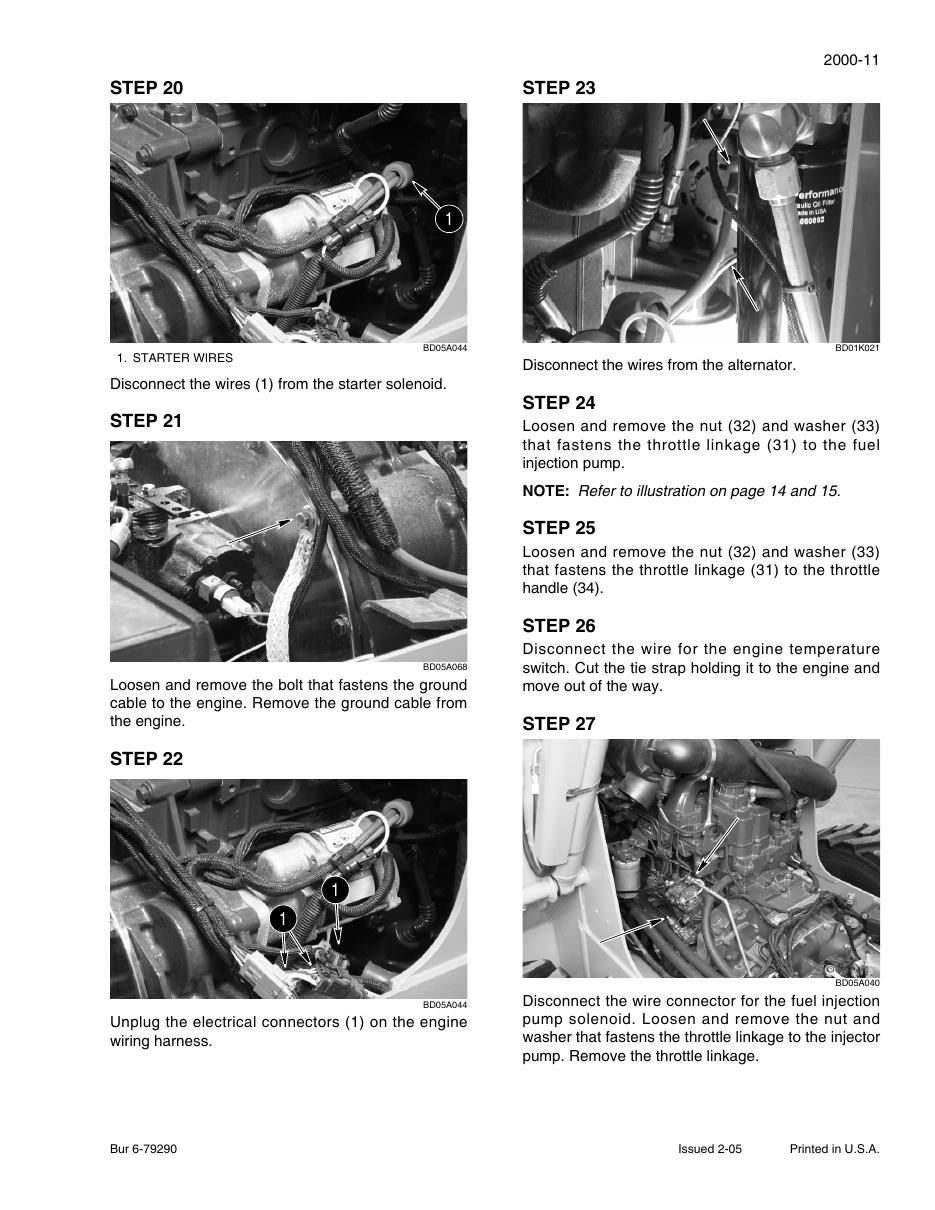

The official service manual for the CASE 430 (without engine section) is divided by system with the following technical coverage:
- Section 1001 — Fluids and Lubricants: Engine oil selection guide, diesel fuel specification (No. 2 diesel, minimum cetane 45), hydrostatic oil specification (CNH-approved 10W-30 engine oil or equivalent), chain case oil (SAE 80W-90 GL-4 gear oil), and coolant mix requirement.

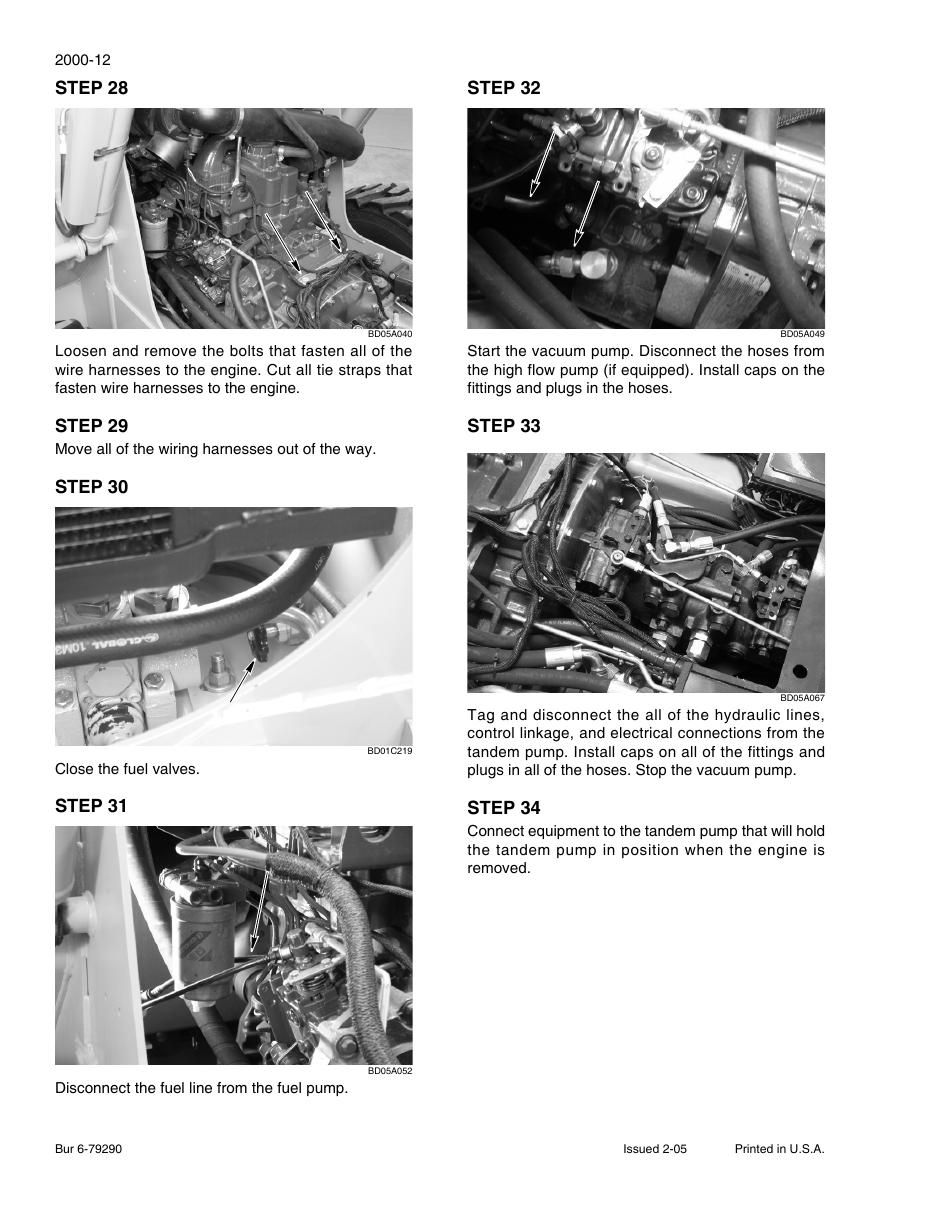

- Hydrostatic Drive System: The 430 uses a tandem hydrostatic pump driving two travel motors. The manual covers charge pressure test (minimum 21 bar cold, 14 bar hot at 1500 rpm), high-pressure relief settings (both loop reliefs: 413 bar / 6,000 psi), and the neutral adjustment procedure for the servo control block.
- Lift and Tilt Hydraulics: Gear pump for the work hydraulics. Main relief setting: 241 bar (3,500 psi). Auxiliary flow test procedure with the correct flow meter adapter specified. Lift arm chain tension adjustment — this is the most common cause of uneven lift performance and the procedure is often missed without the manual.
- Electrical System: Interlock system — seat bar, seat switch, and loader arm interlock circuit. The manual documents which inputs must be active before drive and loader functions enable, essential for diagnosing interlock-related no-function complaints.
- Drive Chain Case: Chain and sprocket wear limits, chain tension adjustment procedure, and oil change interval (500 hours). The chain case is a CASE-specific design — the tension adjustment procedure differs from Bobcat and Caterpillar competitors.
Key Pressure Specifications — CASE 430 / 440 / 450
- Hydrostatic high-pressure relief (both loops): 413 bar / 6,000 psi
- Hydrostatic charge pressure (min): 21 bar cold / 14 bar hot
- Work hydraulic main relief: 241 bar / 3,500 psi
- Auxiliary hydraulic pressure: 207 bar / 3,000 psi
- Chain case oil capacity: 3.8 L (1 gal) SAE 80W-90
Full Skid Steer Collection — 144 PDFs
- Case Series — 430, 440, 450, 465 and older Case skid steer lineup
- Ford Series — Ford-CNH skid steer models with original Ford documentation
- New Holland L100 & C100 Series — L-series skid steers and C100 compact track loaders
- New Holland L200 & C200 Series — Mid-range NH skid steer and track loader
- New Holland L400/L500/L600 Series — Large-frame NH units
- New Holland L800 & L900 Series — Heavy-duty NH skid steer range
Download the Skid Steer Loader Manual Collection
Frequently Asked Questions
Why is the engine excluded from the 430 service manual?
CASE published the powertrain (engine) as a separate manual because the engine (a Tier 3 diesel built by an OEM supplier) is shared across multiple machine platforms. The engine-specific service manual is in the Diesel Engines collection.
Does the collection cover Tier 4 Final compact track loaders?
Yes. The NH C200, C227, and C232 compact track loader manuals (Tier 4 Final) are included, with DPF regeneration procedures and DEF system service documentation.
What is the correct hydrostatic oil for the 430?
Case specifies CNH-approved 10W-30 engine oil (not dedicated hydrostatic fluid) in the 430 hydrostatic circuit. This is a common point of confusion — using dedicated hydraulic oil may cause accelerated seal wear in the Sauer-Danfoss tandem pump.
