Remote installation via TeamViewer included for free
Find the exact factory part for any Chrysler, Dodge, Jeep, RAM or Fiat with Snap-on EPC 5 (data release 2020-09), delivered as a ready-to-run VMware virtual machine. No installation, no database setup — start the VM and the complete FCA Export parts catalog opens, covering model years 1984 to 2021.
Key Features:
- Catalog: Snap-on EPC 5, FCA Export database 2020-09
- Coverage: Chrysler, Dodge, Jeep, RAM, Fiat (export models incl. Mexico/Venezuela/Egypt CKD variants)
- Search: VIN search, year picker (1984–2021), model picker with photos, then illustrated assembly groups
- Details: exploded diagrams with callouts, OEM part numbers, remarks and supersession (SS) info
- Format: pre-installed VMware image, runs isolated from your host system
How to use (see screenshots):

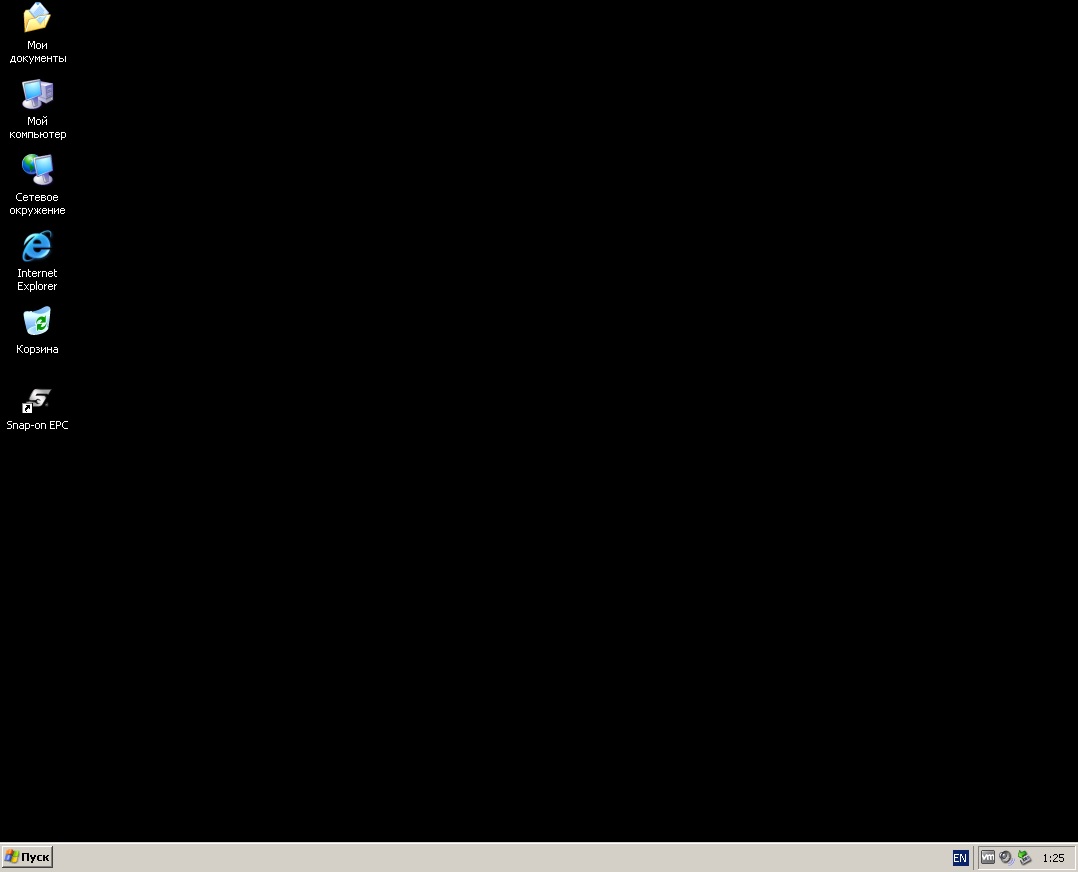

- Launch the Snap-on EPC icon on the VM desktop.

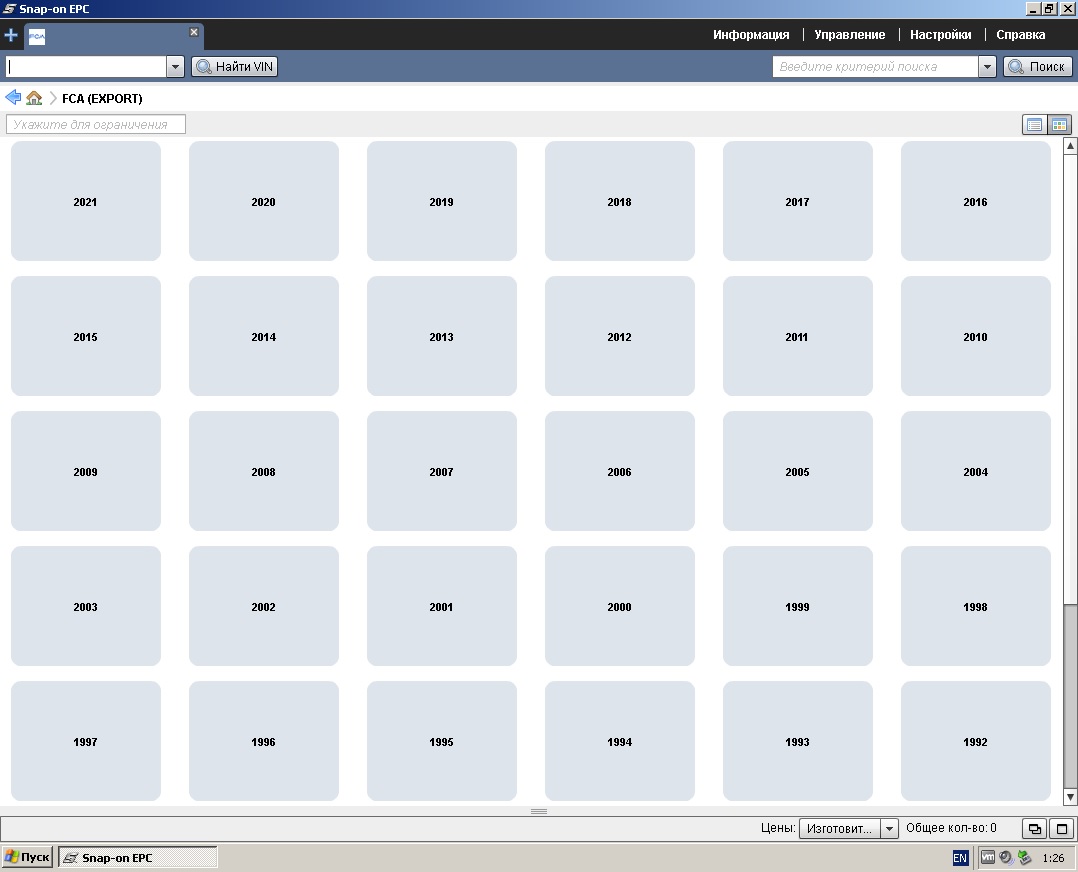

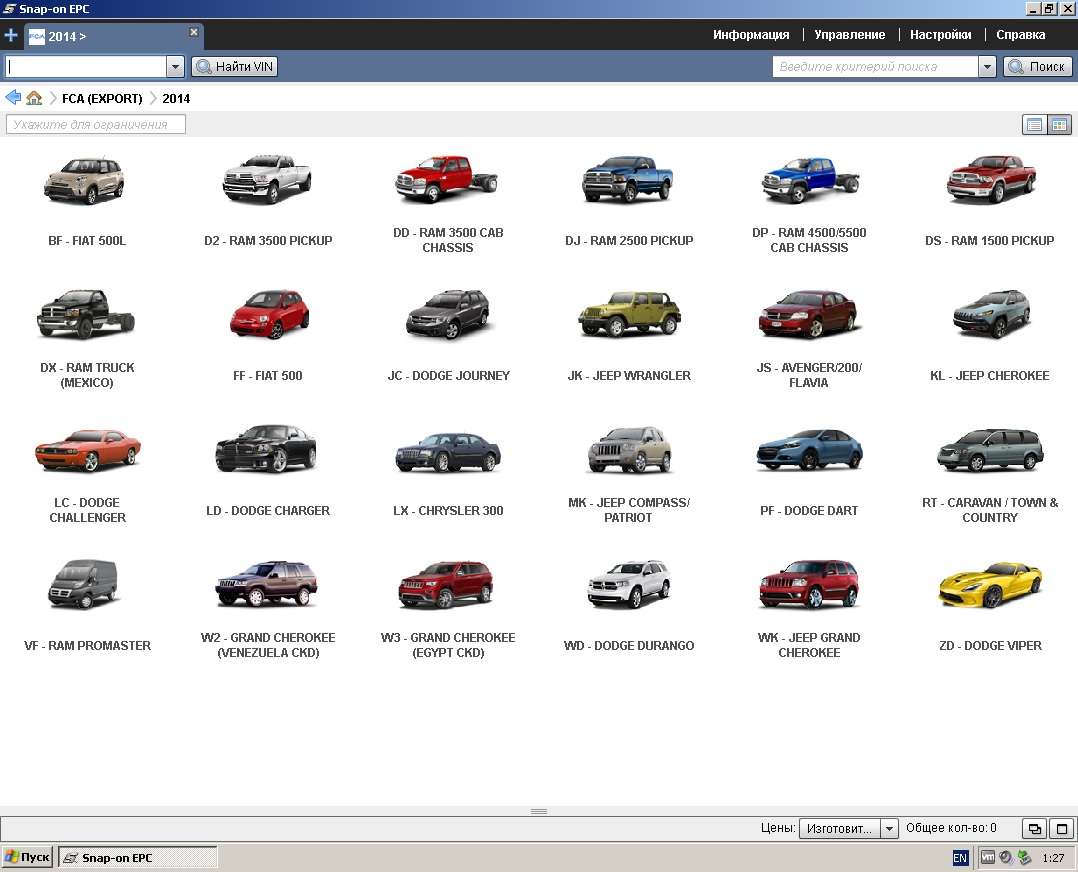

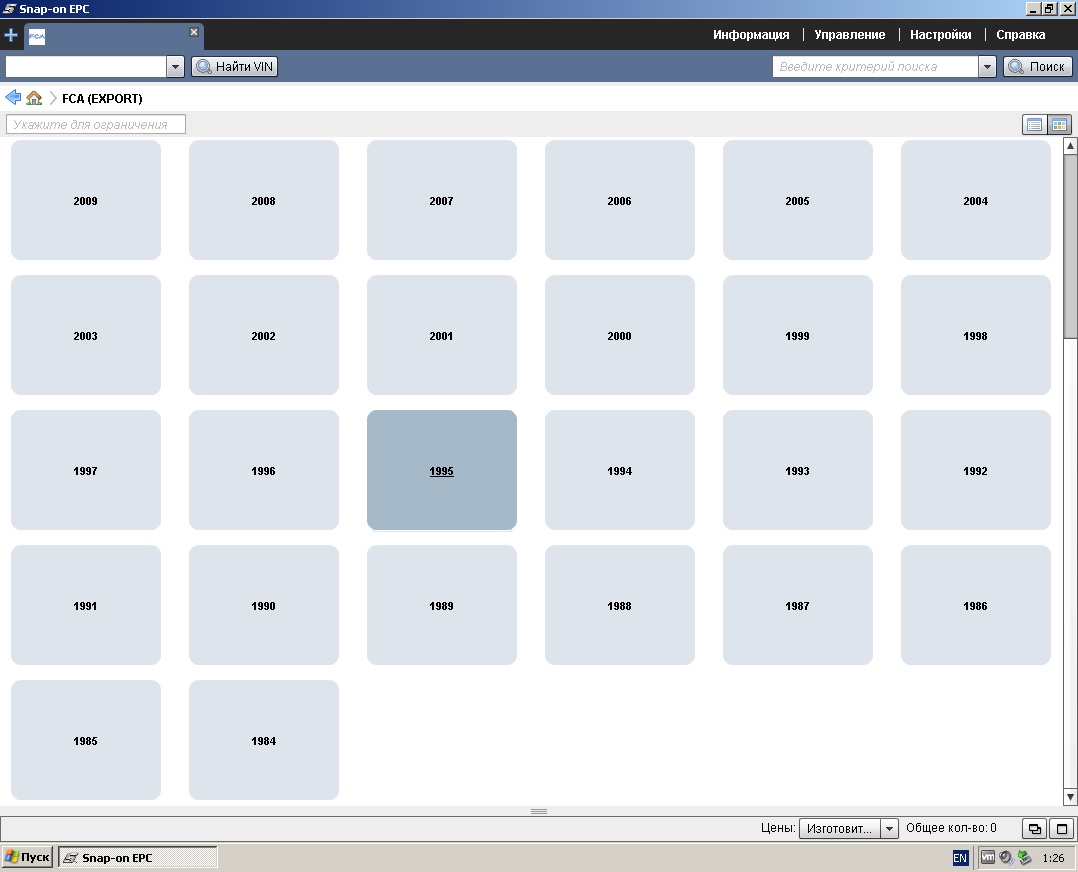

- Pick the model year (photo 2–3), then the model — e.g. 2014 LX Chrysler 300 (photo 4).

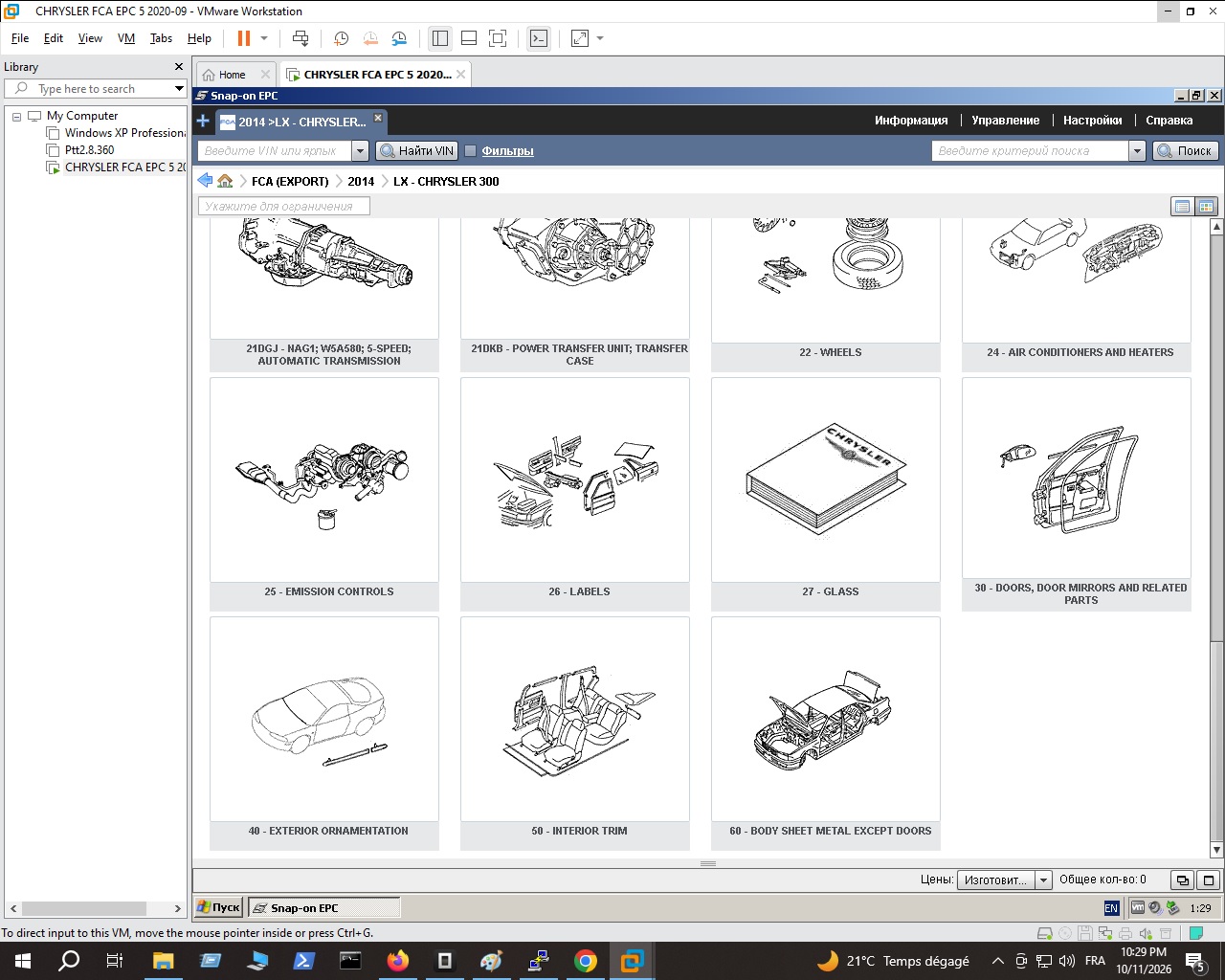

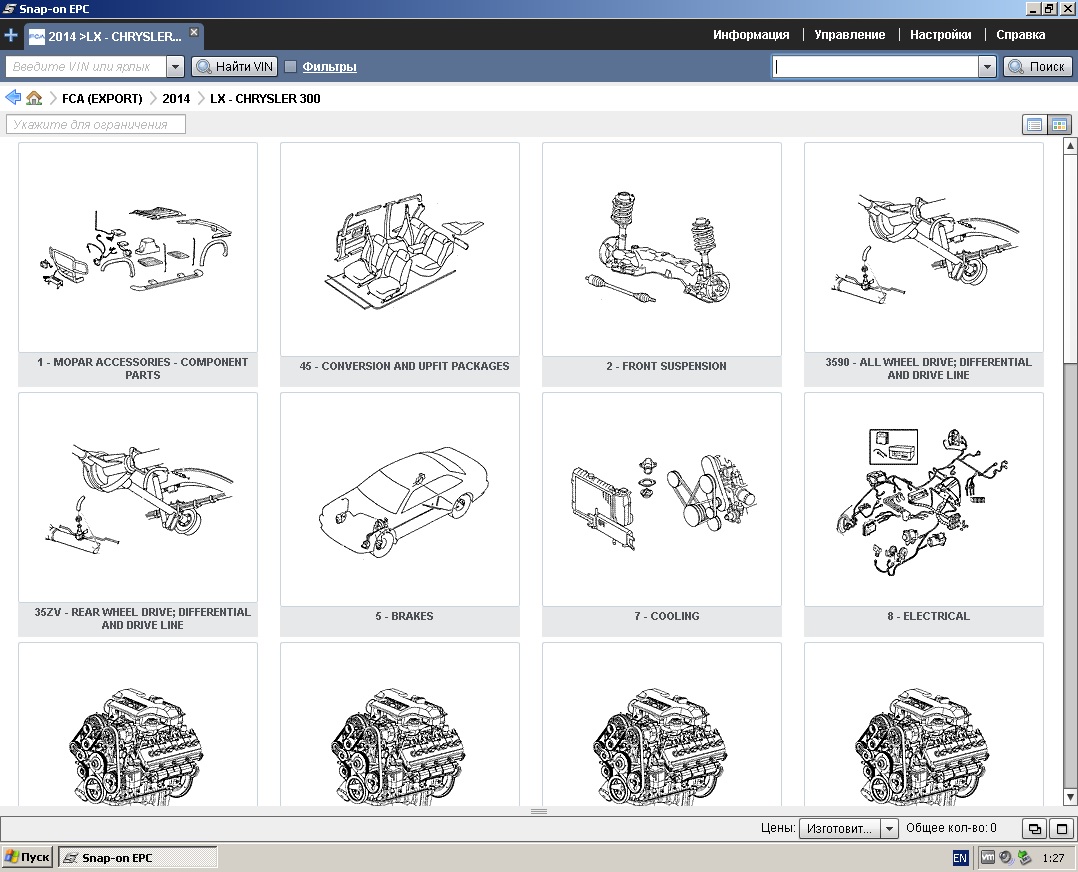

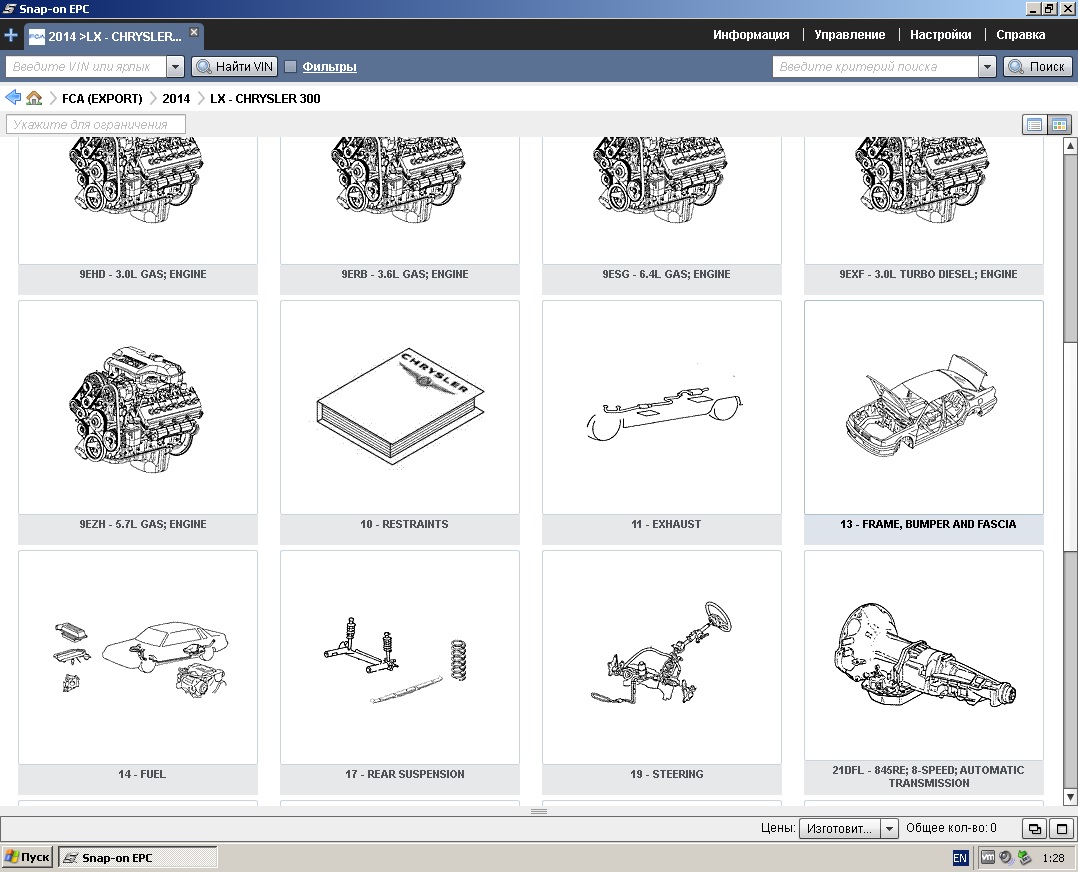

- Browse assembly groups: brakes, cooling, electrical, engines, steering, transmission, body panels (photos 5–7).

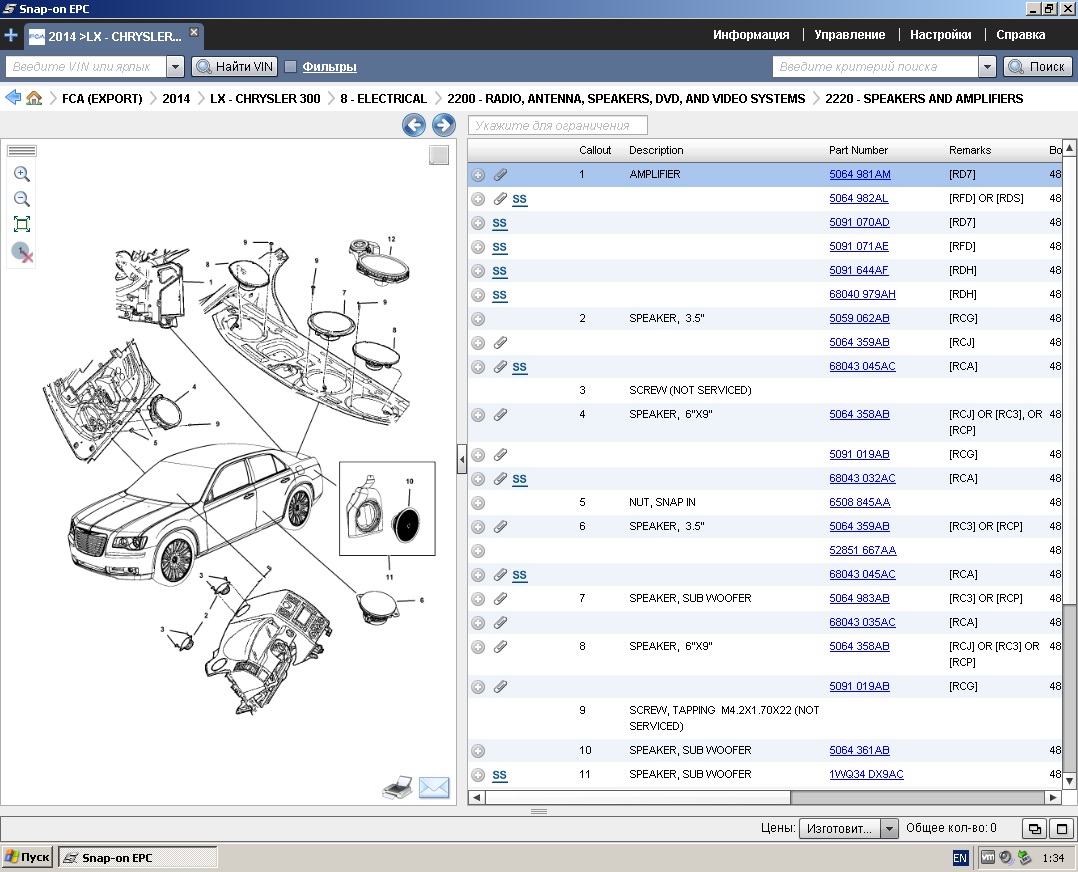

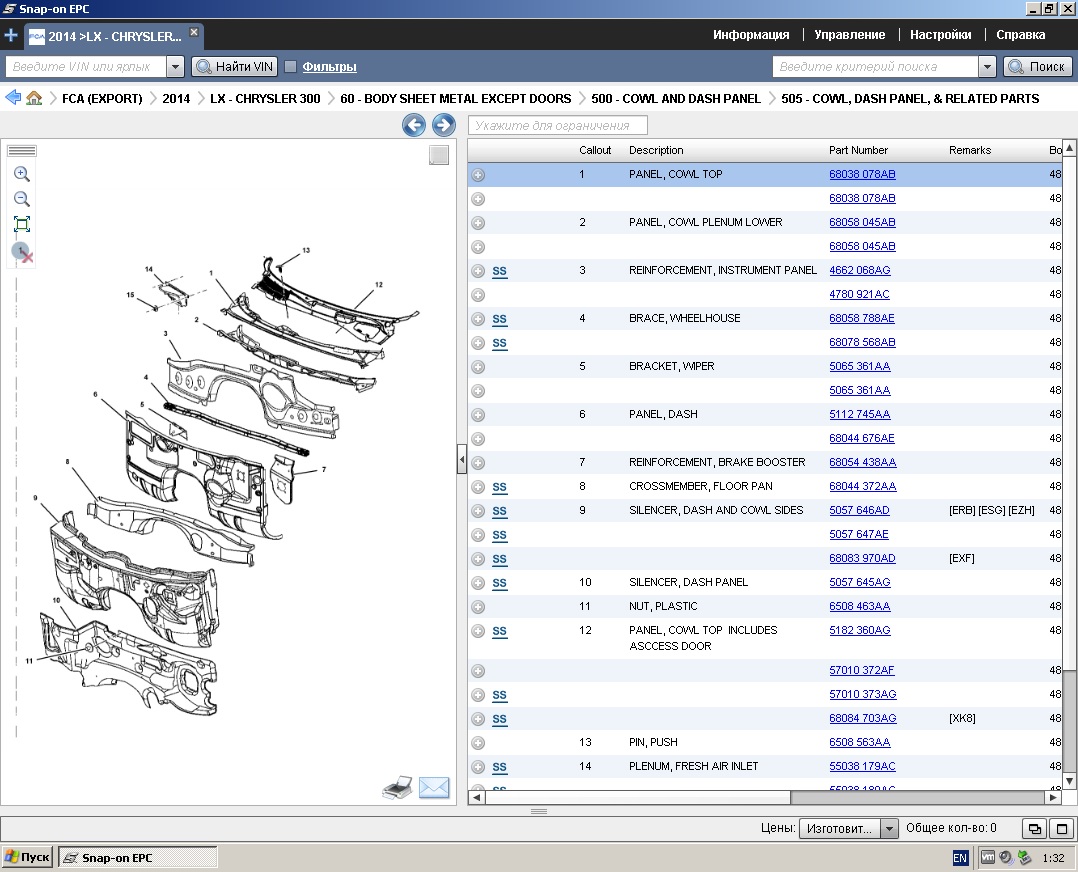

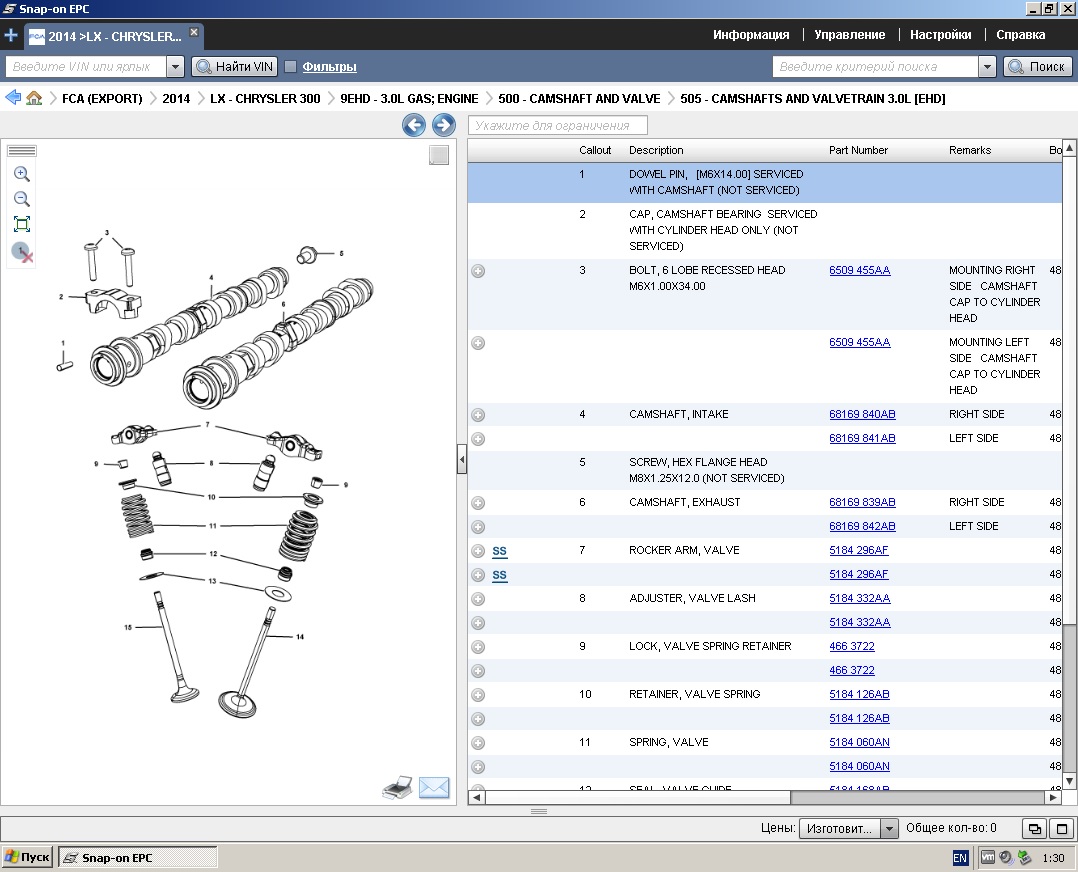

- Open a group to see the diagram plus the part-number table with descriptions and remarks (photos 8–10).
Delivery: download link sent after payment. VMware Workstation or Player required (free).
